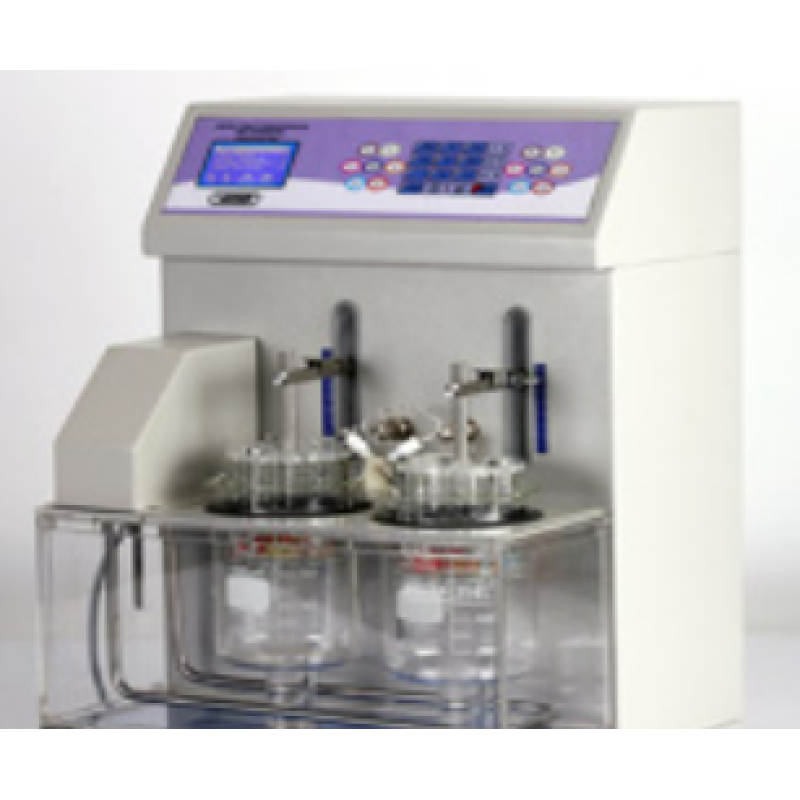

Advanced Programmable Digital Tablet Disintegration Test Apparatus

Latest Advanced Microprocessor Based Unit, with two stepper motors, separate Printer Socket, for individual test, with validation facility,

Main Features:


• Instrument is equipped with two stepper motors. Each motor can be operated independently and two different batch products can be analyzed at a time.
• Digital indicator for temperature with optically isolated electronic heater driver with water bath.
• The Instrument is equipped with dual channel Temperature system to ensure accurate and precise temperature control of the Tank and Beakers.
• Illuminator for clear observations Of Disintegration process has been provided.
• Soft membrane keypad and splash proof panel.
• A four line informative LCD display is provided to observe temperature and set time for both tests side-by-side, at a glance.
• Facility provided to prevent over shooting of temperature.
• Centronics Printer interface has been provided for recording parameters like Temperature, Batch No, Product ID.
• Facility for self-validation of RPM is incorporated.
• Automatic Parking of both Baskets after the Test is over.
• The equipment meets all international standards with respect to calibration, Validation and IQ, OQ requirements.

Specifications:

• Number of Strokes: 30 Strokes/min.
• Temperature Range: 30oC to 40oC
• Display: Four line illuminated LCD display.
• Dual Timer: Settable from 1 min to 99 min.
