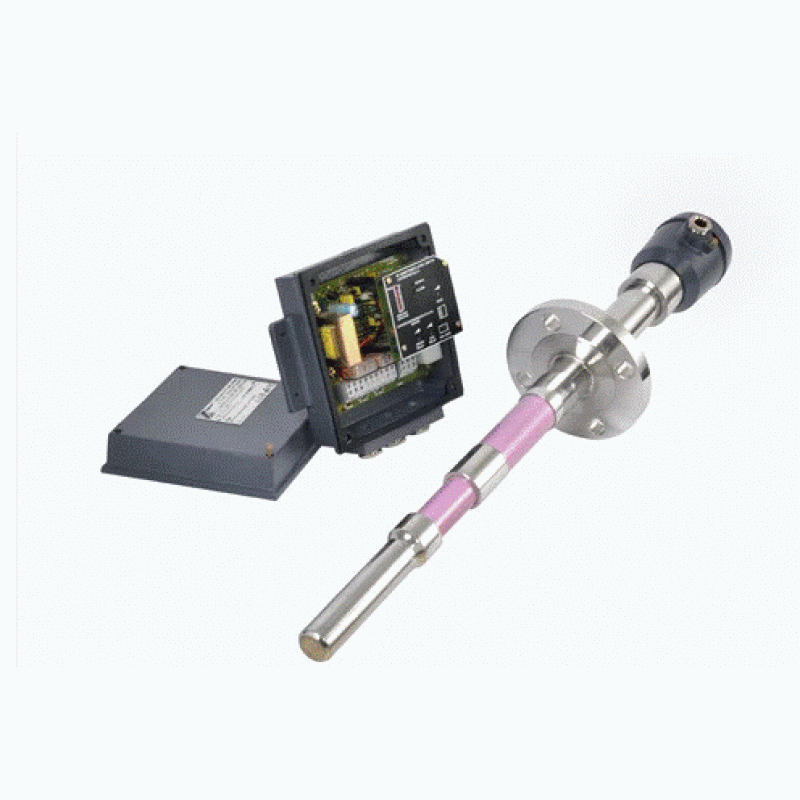

Admittance Level Switch
Admittance Level Switch
Product Details:
Size
Medium
Cable Entries
3 No. / 2 No.
Temperature
-20dig C to + 60dig C
Power Consumption
5 VA approx
Country of Origin
Made in India

Technical Specification:
Housing
Cast Aluminum, weather proof, back panel/wall mounting.
Cable Entries
3 No. / 2 No.
Max. Amb. Temp.
-20º C to + 60 ºC.
Power Consumption
5 VA approx.
Mains Voltage
230 V or 110 V AC (-15% to +10%), 50 Hz; 24 V AC/DC 90 to 260 V AC universal power supply (to be specified while ordering).
Relay Output
One/two set (s) of potential free change over contacts rated at 230V AC 6A, 50 Hz for non-inductive loads.
Fail-Safe Mode
Max. or Min. field selectable.
Indication (switching)
Red LED for alarm, Green LED for normal.
Indication (sensitivity)
10 step LED dot/bar display
Response Time
0.2 second typical.
Switching Delay
Adjustable from 0.5 to 20 second for probe covered or uncovered.
Connection to Probe
Via co-axial screened cable with drain wire.
Switching Hysteresis
0.2 PF. typical.
