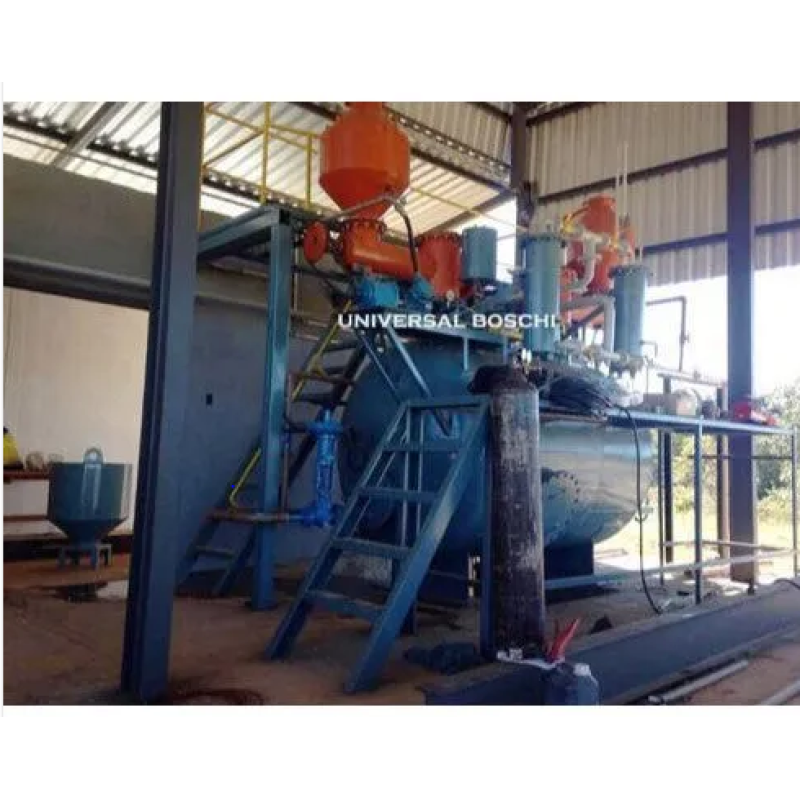

Acetylene Generator Plant
Product Details:

Automation Grade	Automatic
Capacity	50 m3/hour (200 Cylinder/Day)
Brand/Make	UNIVERSAL BOSCHI
Pressure	Less than 0.3 Mpa
Voltage	440 V
Purity	99 %
Frequency	50 Hz
Applications	Oxy Acetylene Welding and Cutting
Technology	ING L.&A. BOSCHI, ITALY (Since 1930)
Phase	3

Our Acetylene Generator Plant is manufactured and designed for generating high carbide yield. Efficiency, reliability and durability of our plants are trusted by customers because of commitment to world-class quality and standards. We provide acetylene gas systems in capacities ranging from 10m3/hour to 200m3/hour. Fabrication and inspection is carried out to meet of design principles and manufacturing practices from Section VIII of the ASME codes. The plant is skid mounted with the generator mounted on one skid while the process equipment is carried on the 2nd skid. The 2nd skid carries the equipment for cooling acetylene that is 99.6% pure. Acetylene is generated by reacting Calcium Chloride with water. The reaction also produces calcium hydroxide and heat.

CaC2 + 2H2O = Ca (OH) 2 + C2H2 Delta H = – 32.5 kcal
Calcium Carbide is poured into hoppers of acetylene Generator and by using carbide feed mechanism rated amount of carbide is reacted with water. We use medium pressure generator type with the ability to use calcium carbide having graded size ranging from 4mm to 50mm. And dust content should not exceed 15%. The generator is equipped with water inlet, residue agitation and residue discharge with recommended carbide size between 25*50.

The fully automatic acetylene generator comes with a single hopper and is recharged by exposure to the atmospheric pressure. Acetylene gas plant remains balanced allowing fast recharging with calcium carbide. We provide cylinder manifolds that are equipped with master valves, station flame arresters and flexible cylinder filling leads with non-return check valves. A digital control panel is used for controlling all automated processes of the plant. We also offer after sales service that extends during the entire lifecycle of the acetylene machinery.

We recommend that customers must send us their complete acetylene gas plant technical specification, required product volume and budget. Accordingly, our sales team will send you the proposed customization for meeting your acetylene requirements. Our machinery is also noted for its impressive return on investment (ROI) allowing you to break even within two years. We have professional shipping team that ensures the plant machinery is packed in a way that nothing gets damaged or misshaped during shipping. Installation and starting up is done by our engineers and technicians.


Components of our Acetylene Producing Plants:
Acetylene Generator
CONDENSOR
Low Pressure Dryer
Purifier
Ammonia Scrubber
Acetylene Compressor
High Pressure Drier
Filling Manifold with two
