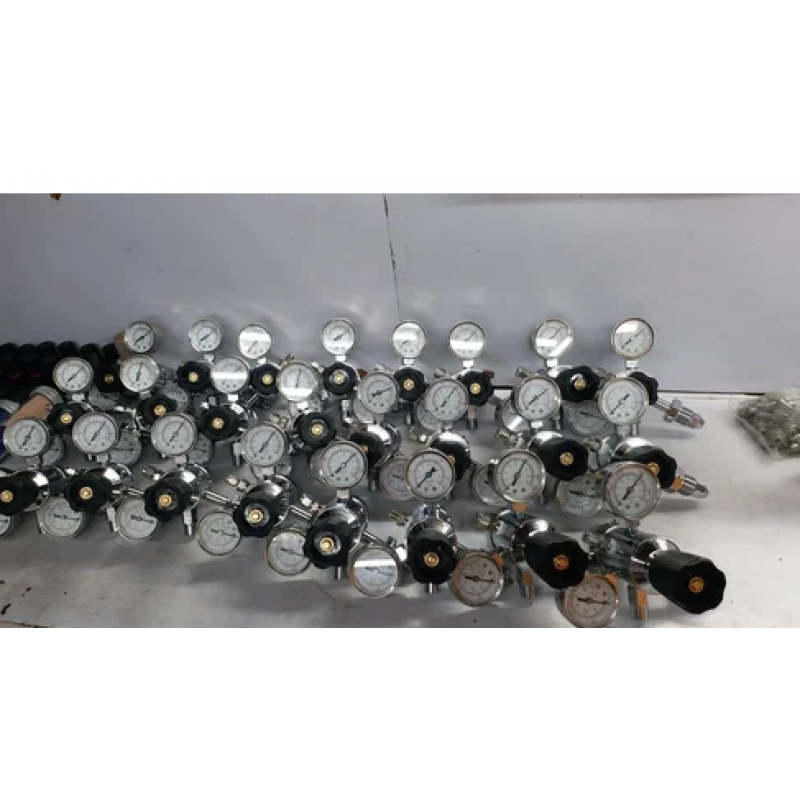

Acetylene Gas Regulator
Product Details:

Minimum Order Quantity	1 Piece
Display	ANALOG
Phase	NA
Gas	NITROGEN,HYDROGEN,AIR,HELIUM,OXYGEN,ARGON,CO2,N2O,ACETYLENE,HCL,AMMONIA,CHLORINE,H2S
Outlet Diameter	52 MM
Inner Diameter	40 MM
Part Number	SEE-1SPR-02
Cga Inlet	5/8" BSP MALE L/H
Finishing Type	MATT
Quantity Per Pack	1 NOS
I Deal In	New Only
Pressure	40 BAR
Material	Stainless Steel
Size	52 MM DIA
Model Name/Number	SEE-1SPR-02
Warranty	12 MONTHS
Leak Proof	YES
With Tube	No
Stage Type	DOUBLE
Brand	SAMPHIRE
Outlet Gauge	4 BAR
Wall Thickness	8 MM
Usage/Application	Industrial
Color	Silvery White
Rated Flow	0.6
Maximum Delivery Pressure	4 BAR
Country of Origin	Made in India
Maximum Inlet Pressure	40 BAR
Packaging Type	STANDARD
Grade	A1 GRADE
Flow Range	150 LPM
Product Type	REGULATOR
Weather Resistant	NON-CORROSIVE
Display Type	ANALOG
Product Code	SEE-1SPR-02
Pre Heater	NA
Regulator Type	High Pressure Regulator
Pattern	AS PER OUR OWN PATTERN
Weight	3 KG
Automation Grade	Manual
Media	GAS
Design Pressure	40 BAR
Capacity	500
Flame Resistant	YES
Inlet Pressure	40 BAR

With a focus on the ever-evolving demands of our customers, we have come up with a wide range of uniquely designed Two Stage Pressure Regulator. Our skilled professionals use premium grade components and contemporary technology in the manufacturing process of this regulator. To ensure its functioning and dimension accuracy, this regulator is duly examined against numerous measures of quality in accordance with defined industry standards. With a focus on the ever-evolving demands of our customers, we have come up with a wide range of uniquely designed Two Stage Pressure Regulator. Our skilled professionals use premium grade components and contemporary technology in the manufacturing process of this regulator. To ensure its functioning and dimension accuracy, this regulator is duly examined against numerous measures of quality in accordance with defined industry standards.
Features:

• Stainless Steel Diaphragm
• Standard 10 μm sintered bronze filter at inlet of main valve assembly

• Cleaned for Oxygen service
  Specifications:
• Stainless Steel Diaphragm
• Standard 10 μm sintered bronze filter at inlet of main valve assembly

• 1.6 μm internal surface finish as standard
• Cleaned for Oxygen service

• Bubble tight shut-off
• Inlet pressure: 210 bar (3000 psi)

• Outlet range: 0 to 16 bar (360 psi)
• Supply pressure effect less than 0.05%

• Samphire manufacturers various kinds of Regulators. Samphire Regulators have been designed to meet the demand of High Purity Corrosion Resistance Product Specially Suited for low level PPM Moisture Two types of Cylinder Regulators available Brass Chrome Plated body with SS diaphragm and SS body with SS diaphragm. Regulator consists of inlet & outlet pressure gauges. Inlet pressure gauge shows the total pressure of cylinder and outlet pressure gauge shows regulated pressure.

  Other Details:
• Inlet pressure range: 0 - 240 kg/cm²
• Outlet pressure range: 0 - 14 kg/cm² in diaphragm type

• Outlet pressure range: 0 - 2, 0 - 4, 0 - 7 ,0-16 kg/cm², in piston type
• High pressure single stage regulator with SS 316 body with SS 316 diaphragm with purge value for Ammonia/ Chlorine gases. Inlet pressure 0-42 kg/cm² & Outlet pressure gauge 0-7 kg/cm²
• High pressure single stage regulator with SS 316 body with SS 316 diaphragm with purge value for Ammonia gases. Inlet pressure 0-42 kg/cm² & Outlet pressure gauge 0-7 kg/cm²

• Ammonia Gas Regulators. The offered regulators are widely used for regulating high pressure ammonia gas in pipeline or cylinder for required working pressure. These regulators are highly appreciated by our clients for their durability and easy installation feature
