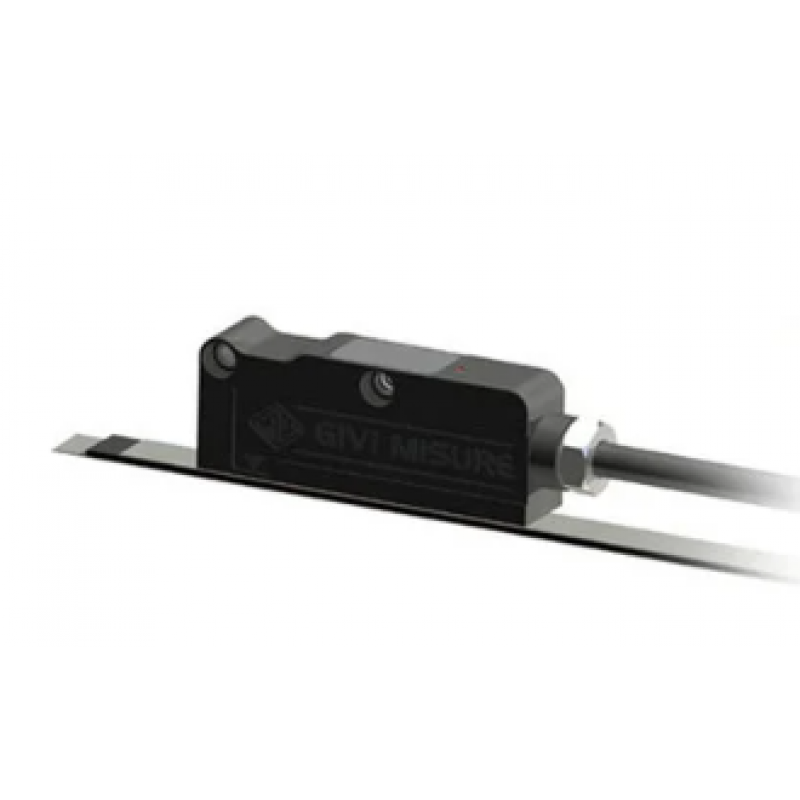

Absolute Magnetic Sensor
Product Details:
Usage/Application | FOR CNC MACHINES |
Model | AGM ABSOLUTE |
Voltage V | 5-28 |
Country of Origin | Made in India |
Place of Origin | Mumbai |
I Deal Only | New |
Having rich industrial experience, we manufacture and supply a wide array of Magnetic Systems AGM. These products are made by using supreme quality material which is sourced from certified vendors of the industry.
Specifications:
High performance, with a measuring length up to 30,000 mm.
Resolutions up to 1 μm and repeatability ± 1 increment.
Wide alignment tolerances and sensor/magnetic band gap up to 1 mm.
Serial interface SSI-BiSS (with or without 1 Vpp analog signal).
SSI protocol and programmable resolutions.
Profibus-DP, Profinet, CANopen, DeviceNet, ModBus and DRIVE-CLiQ protocols, through conversion gateways.
High-speed serial data transfer.
Small-sized, for applications with limited installation space.
Magnetic band width 10 mm.
Insensitive to dust and liquids (IP 67 protection class).
Magnetic sensor body made of die-cast metallic material.
High signal stability, even with high speed and accelerations.
Cable suitable for continuous movements.
Protected against inversion of power supply polarity and short circuits on output ports
