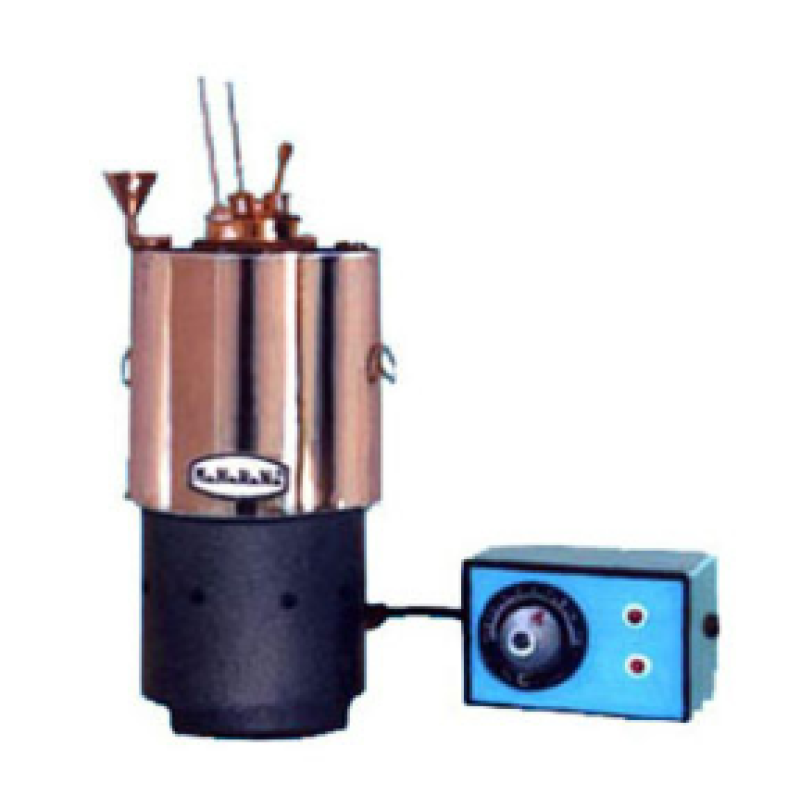

Abel's Flash Point Apparatus BHI OPT 014

Used for determining of the closed cup Flash point of Petroleum Products,their mixtures,others liquids & Paints having Flash Point below 700C. The apparatus consists of one brass cup and cover fitted with shutter mechanism test flame arrangement(Oil test jet or Gas test jet) and stirrer, placed on a water bath made of copper sheet double walled. The outer jecket of the water bath is fitted with a stand. For electrically heated apparatus, heater is fitted to the stand the heat of which may be controlled different temperature regulation system of operated on 220 Volts AC mains. For Gas heated model the drum is heated by a burner. (without burner).
