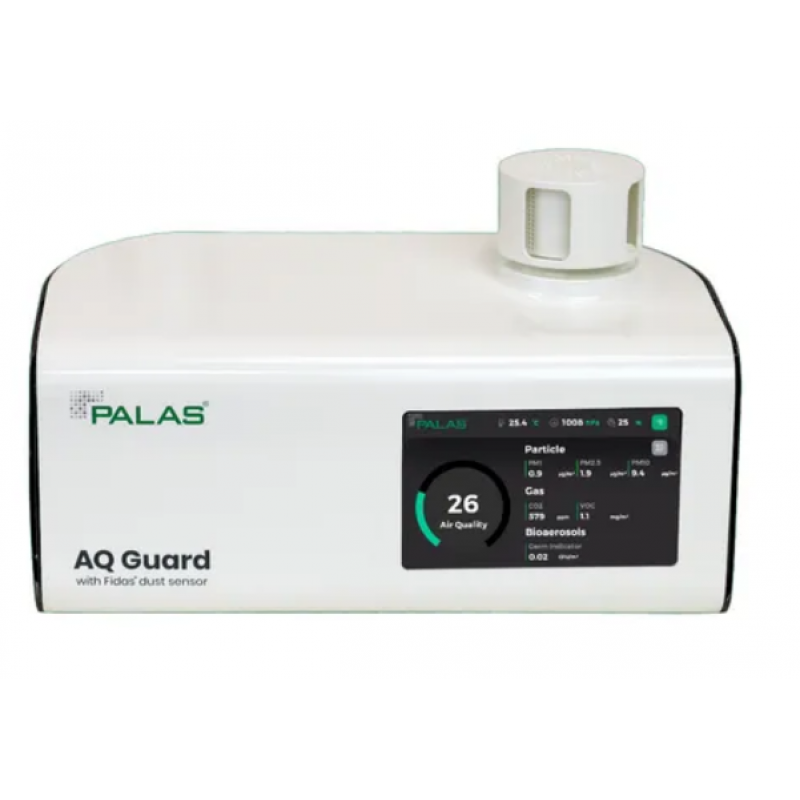

AQ Guard Air Quality Monitors

Product Details:

Usage/Application	Reliable,accurate information of air quality & Infection Risk Index for indoor & outdoor application
Brand	Palas GmbH,Germany
Accuracy	EN16450 certified Fidas 200
Memory	10 GB
Operating Temperature	-20 Degree to +50 Degree C
Display Size	800 x 480 Pixel,5 Inch touch screen display
Flow Rate	1 LPM
Measuring Range	PM1,PM2.5,PM4,PM10,particle size distribution,pressure,temp,RH,CO2,TVOC etc
Model Name/Number	AQ Guard/AQ Guard Ambient
Features	Prediction of inhalation of particles already exhaled by person & On-site calibration capability



AQ Guard is currently the most advanced compact aerosol spectrometer for determining pollution by particulates using 90⁰ optical light scattering, single particle counting (It’s not a nephelometer!!). AQ Guard is offered in two versions: Indoor Air and Outdoor Air. Both models have integrated touch screen display and measure PM2.5 and PM10 data simultaneously. Fine dust professional package with other PM values and particle size distribution is available as an option from 0.175 to 20 microns. AQ Guard has built in PC, therefore no cloud services required. AQ Guard is equipped with temperature, atmospheric pressure and relative humidity sensors.



AQ Guard: Indoor Air can be upgraded with Healthy Rooms package for CO₂, TVOC, Air Quality Index and patent pending germ indicator.



AQ Guard Ambient: Outdoor Air is equipped with protective cover and a compact IADS to compensate humidity influence on PM data even at 100% Rh and eliminates fog droplets.
