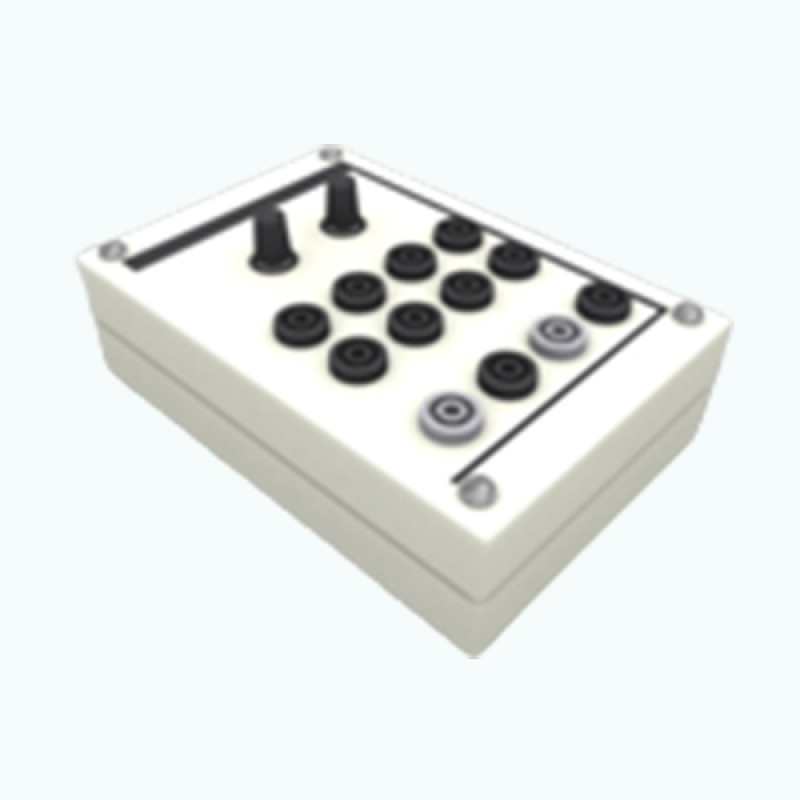

ADVANCED ELECTRO –  HYDRAULIC TRAINER (HYD – 05)

Product Details:

Advanced circuit explains complicated circuits. Hydraulically driven devices can be regulated by electrical controls very efficiently.  This contains industrial application simulations. Power supply of 24 VDC is part of system & all valves operate on safe 24 VDC. The Electro-Hydraulic trainer emphasizes this concept, which is widely used in today’s industry for the automation of machines and machining related processes. The components for the trainer are plate mounted and can be easily mounted on the working panel.  Quick Release Coupling is the important feature for easy connection between components. This trainer is mounted on trolley for easy movements.

Range of Experiments

1. Study of complex circuit of double acting cylinder.
2. Study of flow & pressure dependent circuits.

3. Study of ON delay & OFF delay timer circuit
4. Study of mono-stable memory

5. Study of logic circuit.
