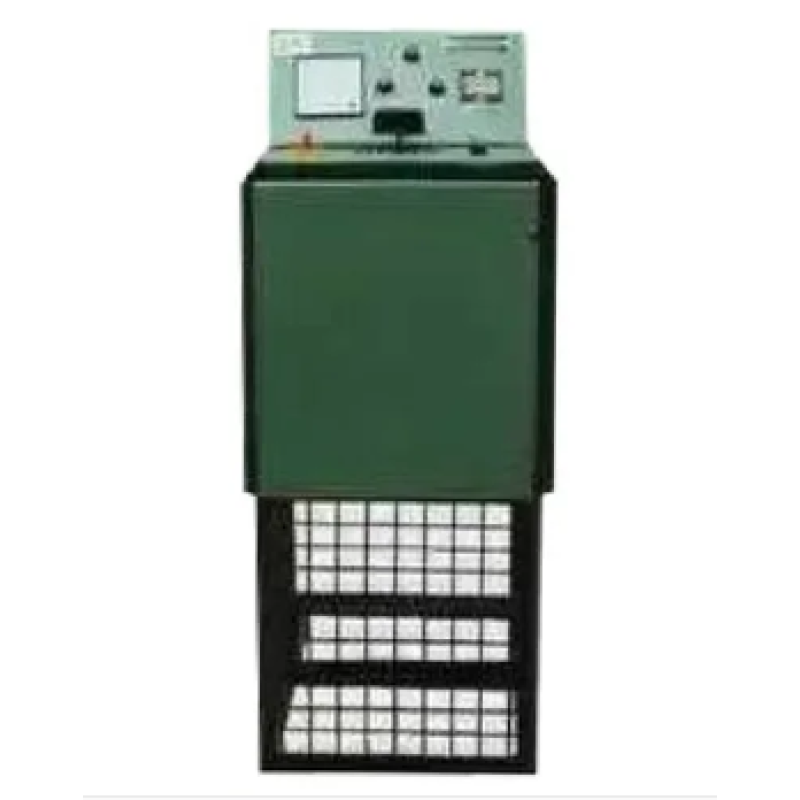

AC SPARK TESTER

Material	Mild Steel
Usage/Application	Industrial
Color	as per requirement
Packaging Type	Box
Display Type	Analog
Load Capacity	2 KVA
Brand	YOKINS
Supply Voltage	0-50KV

AC Spark Tester 0-50KV@ 2KVA
Input-230vac (Single Phase)± 10%
Output-0-50KV. Duty-Contiuouse Control-manual.
Metering-AC Primary side.
Protection-
1.   Fuse input side
2.   A fast acting relay in case of fault/ when current exceed the preset value.
3.   cage door.
4.   control panel air cooled.
HV Transformers air cooled (at 15KV)
5.   Trip & Trip by pass switch.
Indication:
LT on, HT on, Fault.
Push button:

HT ON

Meter type :
AC kV meter.
(size 96/96 Analog. Impluse Counter : 99999
Accessories ;
Input lead 3meters. Output lead 1.5meters.
Electrode box with brass ball chain
Size of set.
Panel (400mm/420mm/910mm)±10%.
