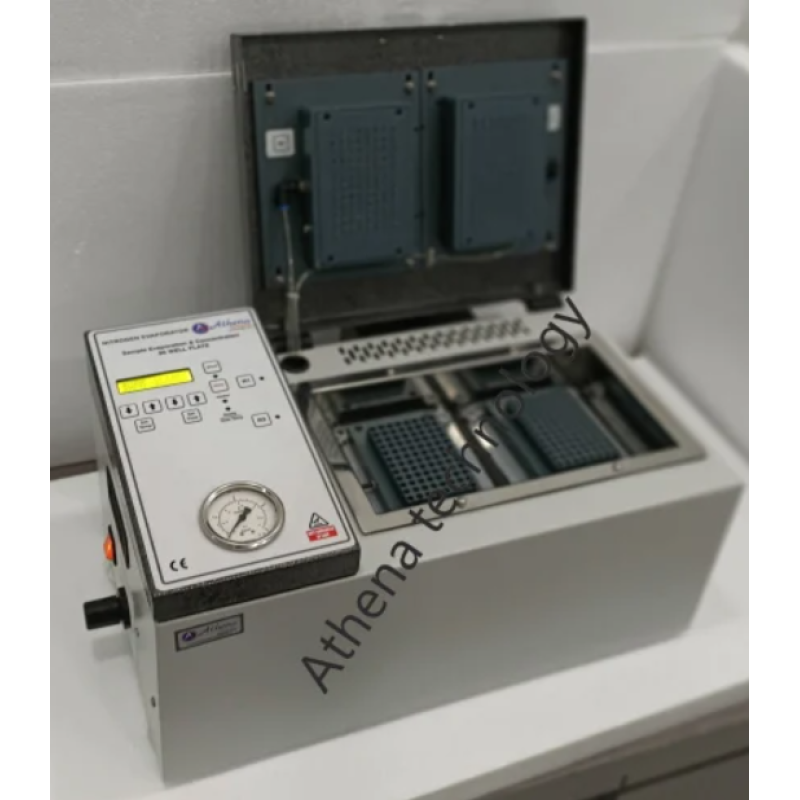

96 Well Plate Nitrogen Evaporator

Introduction:

96 Well Plate Nitrogen Evaporator is a microprocessor-controlled evaporation system for simultaneous, automated and unattended concentration of multiple samples.

Features:

• 2 positions with individual gas regulation
• Compatible with 96-well standard or deep well plates
• Deep or shallow 96-well plates



The Athena Nitrogen Evaporator 96 Concentration Workstation is a high-speed concentrator designed to work with 96-well microplates and deep-well plates. It is an efficient alternative to the constant monitoring and long evaporation times that are characteristic of conventional techniques—with the added bonus of unattended operation. The evaporation process is patented gas-vortex action, further enhanced by a temperature controlled environment and adjustable gas flow rates. This combination saves time, bench space and operating costs while improving the evaporation speed and sample to sample consistency.



Applications:

The Nitrogen Evaporator 96 has two independent compartments that accommodate 1 mL or 2 mL standard or deep well plates. Each compartment has independent control of gas flow and temperature. The flow rate of the gas is determined by the volume of solvent in the plate and the temperature values can be set with the help of an evaporation guide supplied. Nozzles are easy to clean and require minimal maintenance. In genomic and proteomic applications, the evaporation of DMSO from plates is a common application. As is drying HPLC aqueous solvent mixtures of methanol or acetonitrile. The Nitrogen Evaporator 96 complements automated 96-well SPE workstations that are widely used for drugs of abuse determination and other pharmaceutical SPE methods.
