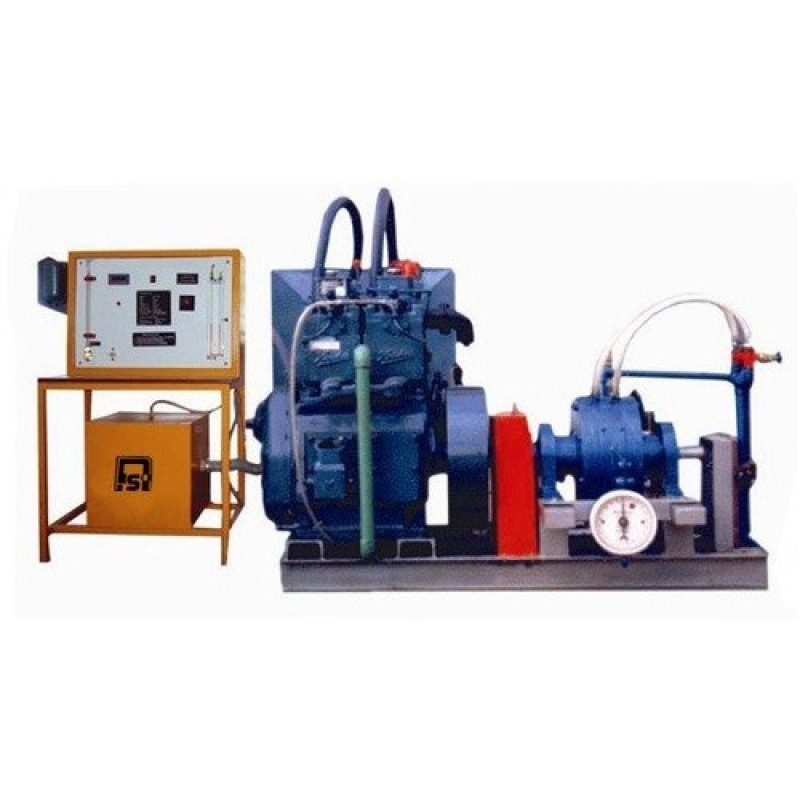

4 Stroke 4 Cylinder Petrol Engine Test Rig (Computerised)

Product Details :

Type	Engine Test Rig
Usage/Application	College Laboratory
Test Component	Engine Test
Fuel Type	Petrol
Number Of Cylinders	4
Size	1000 cc
Packaging Type	Crate
Exhaust Gas Calorimeter	Pipe in pipe Type made of SS
Temperature Indicator	Digital
I Deal In	New Only
Dynamometer Type	Electric Brake
Pressure Measurement	Pressure Sensor
Model Name/Number	RLTD-108
Brand	Reliant Lab

The setup consists of four cylinder, four stroke petrol engine connected to dynamometer for loading. It is provided with necessary equipment and instruments for combustion pressure and crank-angle measurements. These signals are interfaced to computer for P-θ & P-V diagrams. The set-up also consists of air intake measuring unit, fuel measuring unit, temperature measuring unit and an exhaust gas calorimeter. The setup enables study of engine performance for brake power, indicated power, frictional power, BMEP,IMEP, brake thermal efficiency, indicated thermal efficiency, Mechanical efficiency, volumetric efficiency, specific fuel consumption, A/F ratio and heat balance. Rotameter are provided for cooling water and calorimeter water flow measurement. The educational  software and data logging package has been developed for this unit. It is compatible to interfacing unit designed by Reliant Lab. It provides a comprehensive educational software environment within which the investigations can be performed. Interfacing the setup with computer using software can do the real time data acquisition. Data can be transferred in Excel Files for further calculations,plotting graphs, printing etc. Sample readings can be tabulated according to requirement of experiments under study and results obtained can be compared.

Additional Information:

• Delivery Time: 25 days
