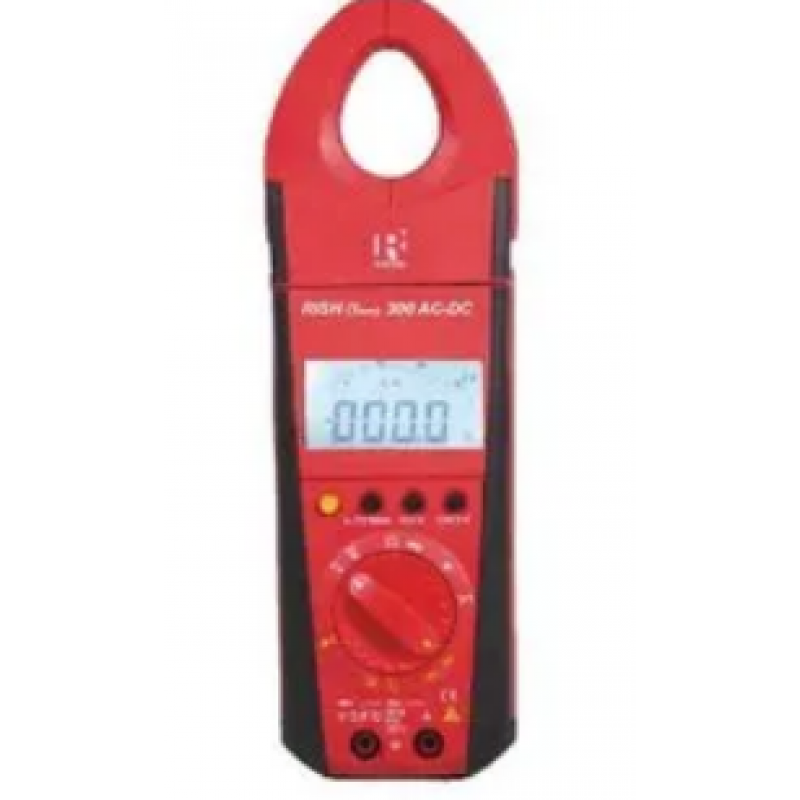

300 AC DC Rishabh Digital Clamp

Product Details:

Model Name/Number	300 AC DC
Brand	Rishabh
Warranty	1 Year
Usage/Application	Industrial
Frequency Hz	0-100 kHz
Country of Origin	Made in India
DC Current Range	0-300 A
DC Current Accuracy	+-(1.5 % + 5 Digits)
DC Voltage Range	30 mV-1000 V

Other Details:

• Type of Product Digital AC/DC Clamp Meter

• Sensing True RMS

• Display 3¾ Digits LCD Display, Counts 3100

• DC Voltage Accuracy ±(0.3 % + 1 Digits)

• AC Current Range 0-300 A

• AC Current Accuracy ±(1.5 % + 5 Digits)

• AC Current Resolution 0.1 A / 1 A

• AC Voltage Range 0-1000 V

• AC Voltage Accuracy ±(0.75 % + 1 Digits)

• Resistance Accuracy ±(0.25 % + 1 Digits)

• Capacitance Range 30 nF-30 µF

• Capacitance Accuracy ±(3.0 % + 3 Digits)

• Frequency Accuracy ±(0.5 % + 1 Digits)

• Temperature Range -200° to 800°C

• Temperature Accuracy ±(1.0 % + 1 Digits)

• Power One 9 V Battery

• Operating Environment 0° to 40°C

• Relative humidity <75 % RH

• Weight 600 g

• Max. DC Current Range 0-600 A

• Max. DC Voltage Range 601-1000 V

• Max. AC Current Range 0-400 A

• Max. AC Voltage Range Above 750 V

• Resistance Range (Ohm) 0-30 MΩ
