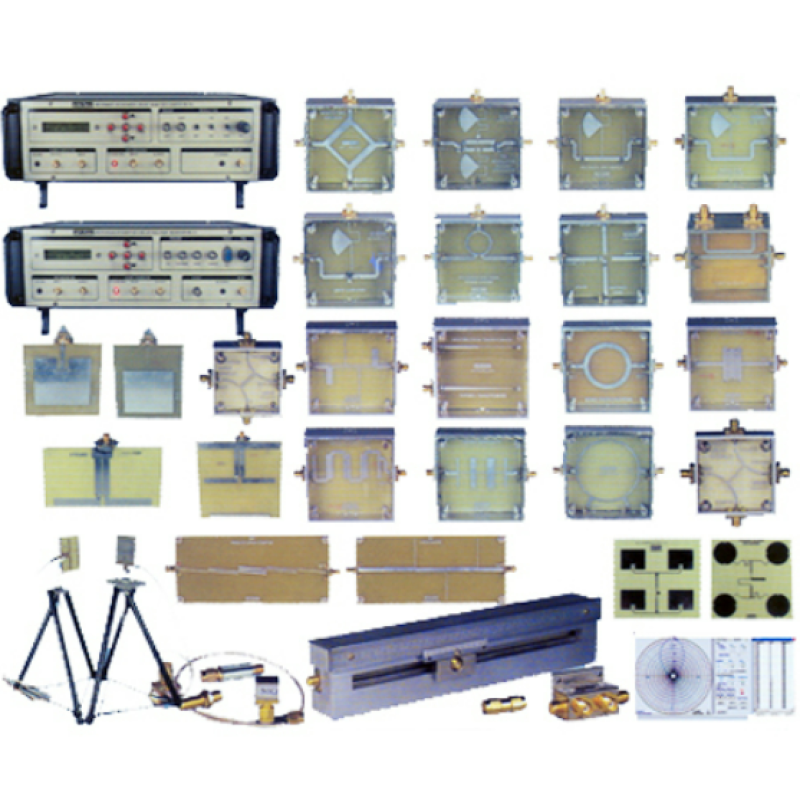

0.005-2 Ghz Mic Training Lab MIC 10

Features & Technical Specifications:

• PLL synthesized source & receiver 5-2000 MHz
• High dynamic range of 110dB with-105dBm sensitivity of receiver and +0dBm source
• Complete S parameter measurement using directional coupler & coaxial slotted line.
• 31 microstrip MIC modules with Gold plated SMA
• Window software for graphical analysis
• Power measurement resolution of 0.1dB on LCD
• PTFE/Silver based RG 316 SMA-SMA cables for unmatched repeatability.

Microwave Signal Generator:

• Frequency range : 5-2000 MHz PLL in 3 ranges
• Step size : 0.05, 0.1,0.25,0.5, 1, 10,100 MHz
• Display : 16X2 Backlit LCD
• Inpedance :50 ohms
• Memory : 1000 frequency be store
• RF Level : 0 dBuV typical
• Attenuator :20+20dB(external SMA-SMA)

PLL Synthesized Receiver

• Frequency range : 5-2000 MHz PLL in 3 ranges
• Step size : 0.05, 0.1,0.25,0.5, 1, 10,100 MHz
• Display : 16x2 backlit LCD
• Memory : 1000 frequencies & levels be stored
• Measurements : RF level measurement in dBuV/ dBm/pW/dBr with 0.1dB resolution
• Sensitivity : -105dBm
• Dynamic range : 110dB (70dB log+40dB attenuator)
• RS232 interface : To PC for plotting using software
• Auto mode : Interfacing with source
• Coaxial Slotted Line : S11>15dB, S12<2dB
• Dual Directional Coupler : SMA, 17dB coupling
