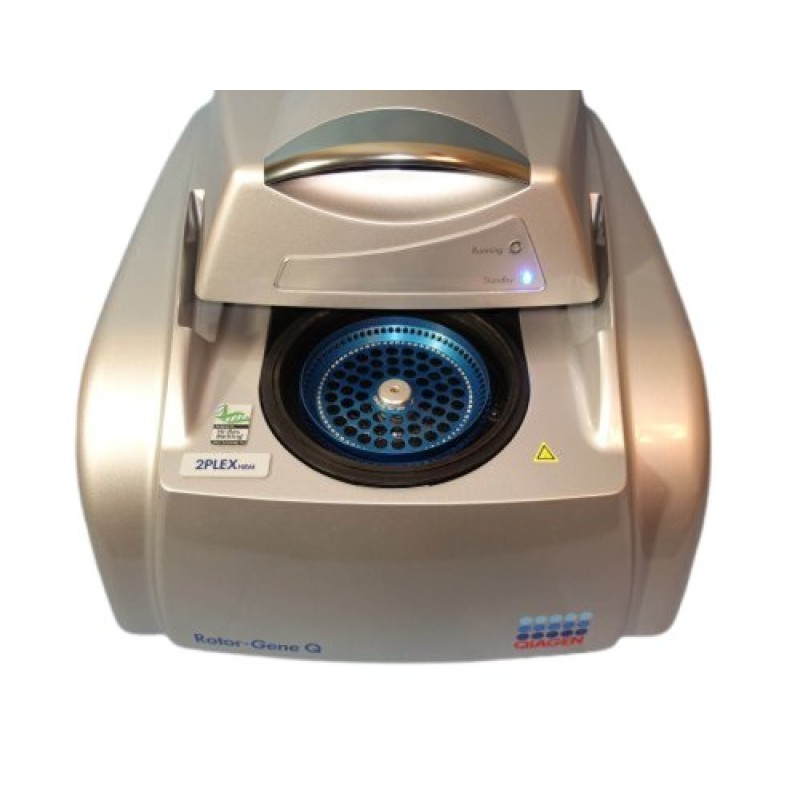

Rotor Gene Q Real Time PCR System

Product Details :

For outstanding performance in real-time PCR

• Outstanding thermal and optical performance due to rotary format
• An unmatched optical range spanning UV to infrared wavelengths
• State-of-the art analyses supported by user-friendly software
• Low maintenance and maximum convenience due to robust design
• High performance in multiple applications with QIAGEN assays

QIAGEN's real-time PCR cycler, the Rotor-Gene Q, combines multiple optimized design features to provide the outstanding performance and reliable results that your research demands. Together with optimized QIAGEN kits for real-time PCR, the Rotor-Gene Q enables streamlined analysis for a wide range of applications. Q-Rex Software is operating and analysis software for life science qPCR applications. A choice of plug-ins lets you add new functionality without affecting established workflows.

Identification of a class IV SNP.

A human A/T SNP in the AHRR7 gene was analyzed using genomic DNA from wild-type (blue), homozygous mutant (green), and heterozygous (red) samples. Experiments were performed using the Type-it HRM PCR Kit and a Rotor-Gene Q cycler with an HRM channel. Data analysis was performed with the unsupervised mode of Rotor-Gene ScreenClust HRM Software. A/T polymorphisms (class IV SNPs) are most difficult to discriminate due to minute differences between homozygote alleles (in this example, less than 0.1°C). [A] HRM raw data, [B] cluster plot. All pseudo-unknowns were correctly clustered according to genotype.

Performance: The Rotor-Gene Q is the only real-time cycler currently capable of deciphering the most difficult class IV SNPs by HRM. Harness the power of HRM using dedicated QIAGEN HRM Kits for applications such as genotyping (see figure "Identification of a class IV SNP" for data from the Type-it HRM PCR Kit), quantitative methylation analysis (see figure "Highly sensitive detection of methylated DNA" for data from the EpiTect HRM PCR Kit), gene scanning, and sequence matching. The Type-it HRM PCR Kit reliably and accurately detects gene mutations and SNPs. The EpiTect HRM PCR Kit enables fast screening and accurate detection of changes in CpG methylation status of bisulfite converted DNA.

Principle Unique rotary design for outstanding performance

The unique centrifugal rotary design of the Rotor-Gene Q makes it the most precise and versatile real-time PCR cycler currently available (see figure "Cross-section of the Rotor-Gene Q"). Each tube spins in a chamber of moving air, keeping all samples at precisely the same temperature during rapid thermal cycling. Detection is similarly uniform. When each tube aligns with the detection optics, the sample is illuminated and the fluorescent signal is rapidly collected from a single, short optical pathway. This thermal and optical uniformity results in sensitive, precise, and fast real-time PCR analysis (see figure "Precise real-time PCR analysis"). It also eliminates sample-to-sample variations and edge effects. These are unavoidable in traditional block-based instruments due to temperature gradients across the block and multiple, complex optical pathways.

The rotary design delivers:

• Tube-to-tube variation ±0.02°C
• Uniform detection eliminating the need for ROX reference dye
• Fast ramping and negligible equilibration times for short run-times
• Complete confidence in your results

Unrivaled optical range enables multiple applications

Whether your assay is based on intercalating dyes such as SYBR® Green, probes such as hydrolysis (TaqMan®), hybridization (FRET), Scorpion probes, or other multiplex chemistries, the Rotor-Gene Q meets your requirements. With up to 6 channels spanning
