Ultrasonic Level Meter Laser Sensors

Product Details :

Power source	12 to 24VDC(10 to 28V), 3W or less(Isolated power)
Frequency of ultrasonic	50 Hz
Standard sensing length	0.5 to 5m
Detectable object	Powder object(Liquid object)
Beam angle	14 Degree
Measuring precision	0.25% full scale or 1cm(Bigger value)
Indication	LED with 3 digits
Temperature compensated sensor	Minus 20 to plus 60 degree C
Momory back-up	EEPROM
Average processing numbers	1-30 Times
Weight	350 GM

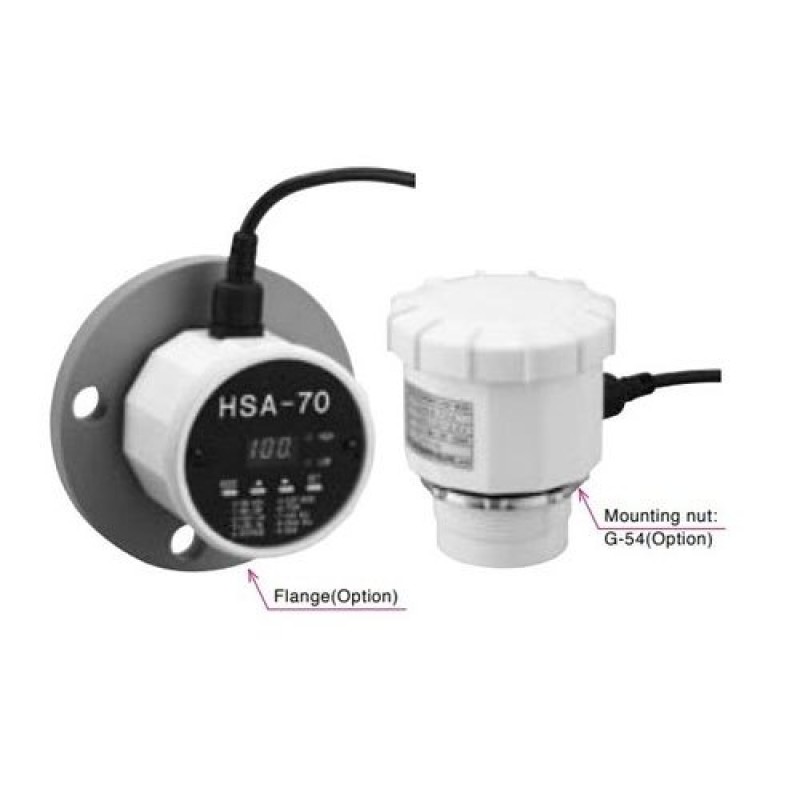

HSA Series
Compact body which withstands chemicals and corrosion RS-232C interface and 4-20mA current output are provided
·         This sensor has applied "principle of echo" that sound reflects in a thing and comes on the contrary.
·         It measures transmission time from projecting ultrasonic to receiving it and distance is measured.
·         It is possible to measure even if dew drops on transmission surface.
·         It corresponds to chemical and corrosion-proof by united resin mold(polypropylene).
·         It is easy connection system with water-proof connector.
