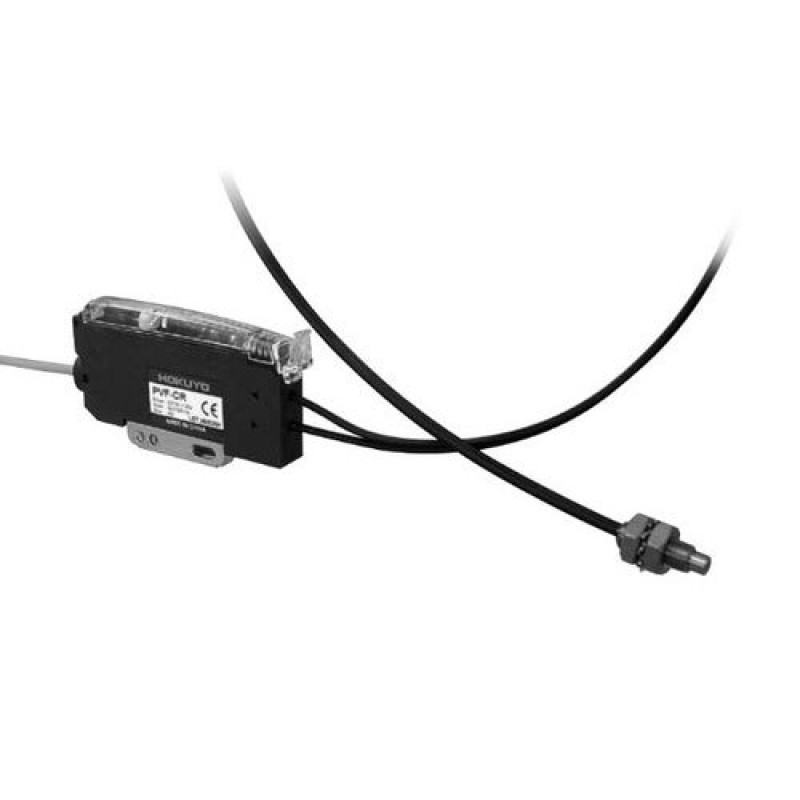

Optical Fiber Sensor

Product Details :

Weight	70 Gm
Connection Type	Cable Type
Power Source	12,24 VDC
Current consumption	45 mA
Light Source	Red LED
Operating Mode	Changeover of Light-ON/Dark-ON
Output Type	NPN open-collector output,100mA/30VDC or less Residual voltage 1.8V or less
Response Time	250 msec
Timer function	Provided
Timer time	40 Msec ON,Off Delay
Protective structure	IP 66

PVF Series
Large & Easy-to-see Indicators!Large Sensitivity Adjuster!
·         Accessory such as screw driver for sensitivity adjuster is not required because large-sized adjuster is provided.
·         Fiber insertion indicator is provided.
·         It is easy to see stable level lamp and output lamp because of large size.
·         NPN and PNP output type are lined-up.
·         Off-delay timer (40msec) is provided.
