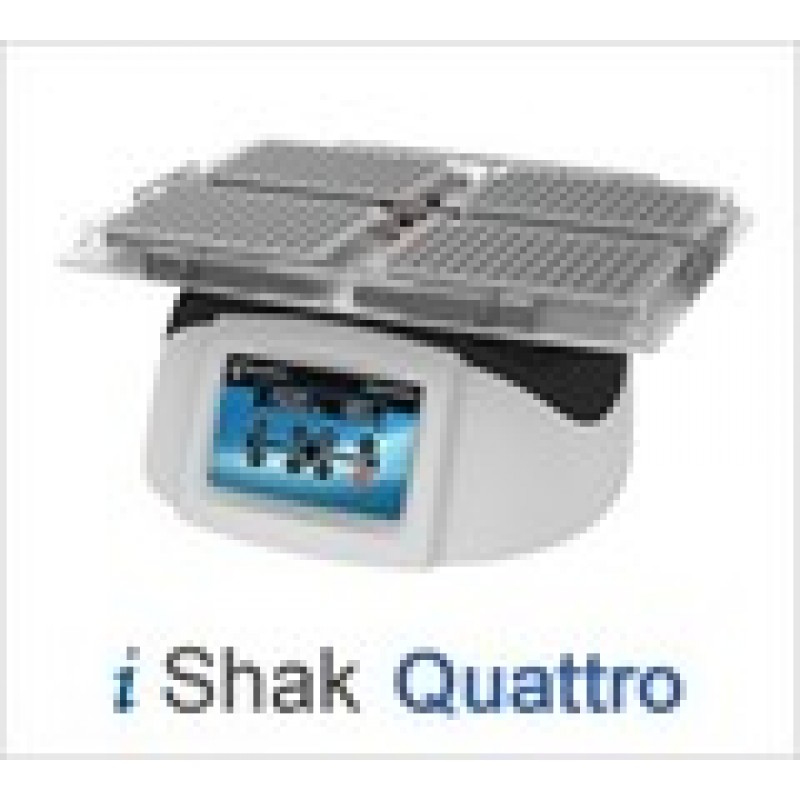

We Built with completely smart controls making it a smart design, this product is made for making your work easier and simpler. Controlled by microcomputers, hence working on less voltage means, adds great efficiency, and a Digital Display for more convenience. Comes with a speed range of 100-1200 RPM at every 10 RPM, and works non stop for maximum 99 minutes, also at infinite mode. Constructed with in built pulse mode for proper stability and other options for different jobs. The products 4 plates are easy to maintain, hence convenient in loading and unloading the plates. Usage at cold a pr hot conditions will not effect the working.
Features
- Brushless DC motor for quite operation and maintenance free long life.
- Microprocessor controlled unit with Digital display for ease of operation.
- Adjustable speed ranging from 100 to 1200 RPM at every 10 RPM.
- Adjustable timer from 1 minute to 99 mins & infinite mode.
- Pulse mode for vigorous shaking.
- Favourite mode option for ease of operation.
- Easy access to all 2 plated for loading and unloading.
- Low voltage instrument ensure user and product safety.
- Accepts all standard microplates.
- May be used in cold room or incubator(5*C to 40*C).
Specifications | Quattro |
Motion | Orbital |
Orbitaldiameter | 3mm |
Speed | 100 to 1200 RPM at every 10 RPM |
Pulse mode | Yes(clockwise & anticlockwise) |
Time | 1 to 99 minutes & infinite mode |
Display | 7-segment |
Dimensions(WxHxL)inmm | 275x127x261 |
Input power | 220-240 VAC,50-60Hz |
Output power | 24 VDC |
Power consumption | 36 W |
Weight | 6.5kg |
Load capacity | 2kg |
Platform size | 274x190 mm |
Permissible ambient temp. | 4-65°C |
Permissible relative moisture | 80% |
Protection Class | IP 21 |
Maximum Volume | 384x60 μl |
Noise level | < 60 db |
