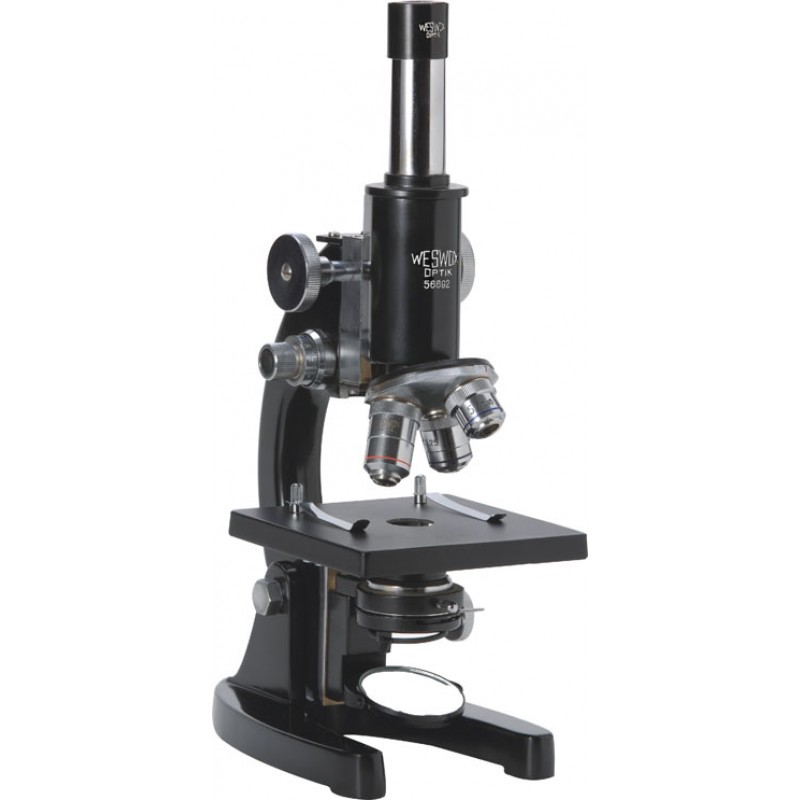

Widefield Senior Student Microscope
HL- SERIES IDEAL FOR THE CLASSROOM
robust, reliable metal construction and excellent optical performance.
PREMIUM quality KEOWA optics provides clear and bright images and 40% larger field of view as compared to ISI marked microscopes.
Black stoving finish and hard instrumental chromium plating will accent any classroom environment.
Specifications:
Warranty Information 2 Years parts.
3 years KEOWA optics.
| Body | MONOCULAR body with horse shoe shaped base hinged type, versatile designed inclinable to 90o assembled from DIE-CAST parts. | |
| Viewing Tube | MECHANICAL tube of length 160+1mm. | |
| Eyepiece | KEOWA HKW 10x(WF) & H6x. | |
| Nosepiece | TRIPLE revolving nosepiece with positive centering and click stop. | |
| Objectives | KEOWA10x & 40x (SL). | |
| Stage | FIXED square stage of size 120mm X 120mm with Phosphorus stage clips. | |
| Focusing | RACK AND PINION knob provided for sensitive focusing. | |
| Knobs | SEPARATE coarse and fine motion knobs with very precise & accurate graduated fine motion reading to 0.002mm, for fine adjustment and a stopper to prevent damage to glass microslides and objective lenses. | |
| Condenser | TWO LENS ABBE condenser NA 1.25 with continuously variable iris diaphragm and swing-out filter holder. | |
| Illumination | STANDARD plano concave mirror 50 mm dia. in fork for natural light, replaceable by a substage microscope lamp. |
| Magnification | 50x-600x | |||||||||||||
| Packaging contents | Packed in shockproof Styrofoam moulded box or in a plywood cabinet having provision for placing eyepieces and objectives and dust cover. | |||||||||||||
| Accessories (optional) | Detachable graduated mechanical stage. Substage illuminator ML-1. Workable on 220 volts direct Huyenian eyepiece H5x or H10x or H15x Pointer Eyepiece 5x or 10x or 15x. Oil immersion 100x (SL) NA 1.25. |
Student Microscope HL-333
