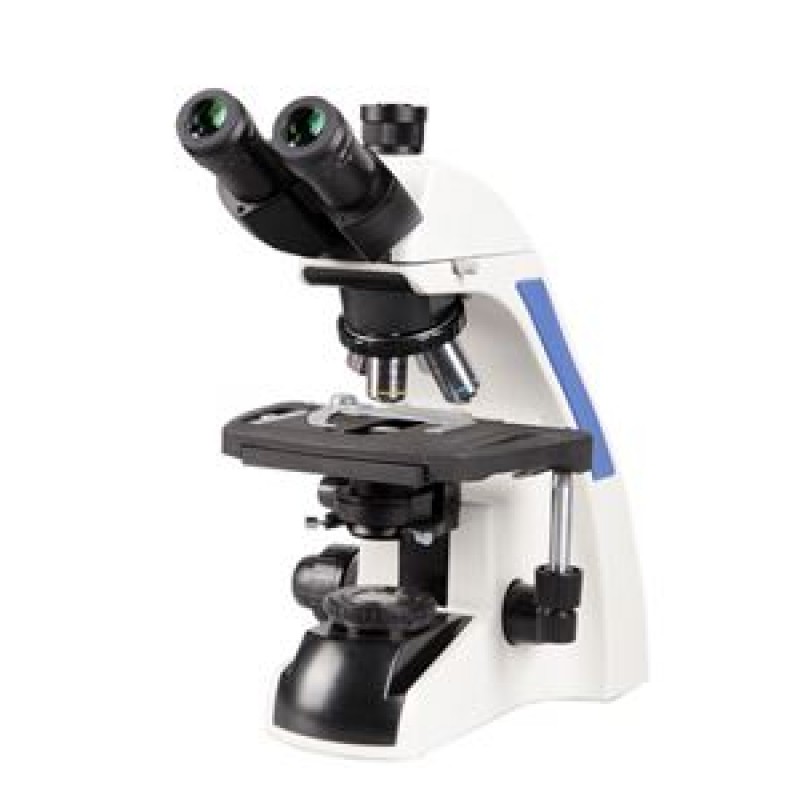

The LABOVISIONTM DG Sense i1300 is a Trinocular Microscope with a blend of Superb Optics, single-cast durable construction and a built-in 1.3 MP digital camera which is suited for versatile and fully extendable research microscopy. The Microscope transmits live streaming images to your computer. With the included software you can view and capture images directly onto your computer screen.
SPECIFICATION
| STAND | C shaped, Single Mould corrosion resistant, Anti mould treated stand with modular base |
| EYEPIECES | WF 10X/20mm with Dipoter Adjusment. Anti fungus treated. Optional WF 15x mm |
| VIEWING BODY | 30° Inclined Siedentopf Binocular / Trinocular tubes, 360° rotatable with IPD 54-75 mm . Anti fungus treated |
| NOSEPIECE | Quadruple, Revolving Inward Facing Nosepiece |
| STAGE | Double layer graduated mechanical rectangular stage size 140 x 132mm cross travel 75(X) x 50(Y) mm, double specimen holder |
| ILLUMINATION | Koehler Illumination, Super Bright White LED cold Light, Universal Power Supply 100 V to 240 V,AC 50-60 Hertz, CE Compliant. Optional 6V 20W Halogen Lamp |
| OBJECTIVES | IP series Infinity DIN PLAN Achromatic, Anti fungus treated, 4x/NA 0.10, 10x/NA 0.25,40x/NA 0.65 SL. 100x (Oil, SL). Optional 20x/ NA 0.40 SL, 60x/NA 0.85 SL |
| CONDENSER | Movable ABBE condenser, with aspheric lens NA 1.25, daylight blue filter & Iris diaphragm. Centrable |
| OPTICAL | Infinity Optical System |
| IMAGE DEVICES | 1.3 Mega pixel Color CMOS sensor |
| RESOLUTION | Effective pixels 1280×1024 |
| SENSITIVITY | 1.0V/Lux-sec(550nm) |
| DATA INTERFACE | USB2.0 480Mb/s |
| EXPOSURE CONTROL | Auto exposure/Manual exposure/Area exposure |
| SOFTWARE | dgsoft ProMED ver 5.06 Image Analysis Software (Optional) |
| SYSTEM REQUIREMENTS | CPU : Pentium IV or Higher, RAM : 2 GB or more, Hard Disk Space : 50 GB or more, Windows XP(32/64-bit); Win7(32/64-bit), CD-Rom drive and USB 2.0 port Monitor : 17’’ or More High Resolution monitor |
