The COAX 10B reflects a friendly design suitable for both the classroom and laboratory environment. Embodied with a sturdy aluminium die-cast stand and plastic hand rests, high quality optics and optical coatings, and brass gears, all of which pose the COAX 10B to resist the toughest of user environments.
SPECIFICATION
| STAND | Sturdy Stand, corrosion resistant, Anti mould treated stand with modular base | |
| EYEPIECES | HKW 10X, Optional Huygenian 5x, WF 10x/18mm, WF 15x/16mm, Anti Mould Treated | |
| VIEWING BODY | 45° Inclined Binocular, 360° rotatable with IPD 54-74 mm with dioptric adjustment | |
| FOCUSING | Ergonomic low position co-axial coarse and fine focusing system on ball bearing guideways. | |
| NOSEPIECE | Quarduple, Revolving nosepiece (Ball Bearing Type) | |
| MECHANICAL STAGE | Graduated Mechanical Rectangular Stage , X-Y travel 76mm×50mm | |
| ILLUMINATION | Illumination, 6V 20W Halogen Lamp, with Solid State 220 V transformer | |
| OBJECTIVES | VA series Semi Plan Achromatic, 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 SL,100x/NA 1.25 SL, Oil. Optional 20x/ NA 0.40 SL, 60x/NA 0.85 SL, Anti Mould Treated | |
| CONDENSER | Movable ABBE condenser, with aspheric lens NA 1.25 & daylight blue filter | |
| OPTIONAL ACCESSORIES | Simple Polarizing Kit, Plano Concave Reflector Mirror, Micrometer Eyepiece |

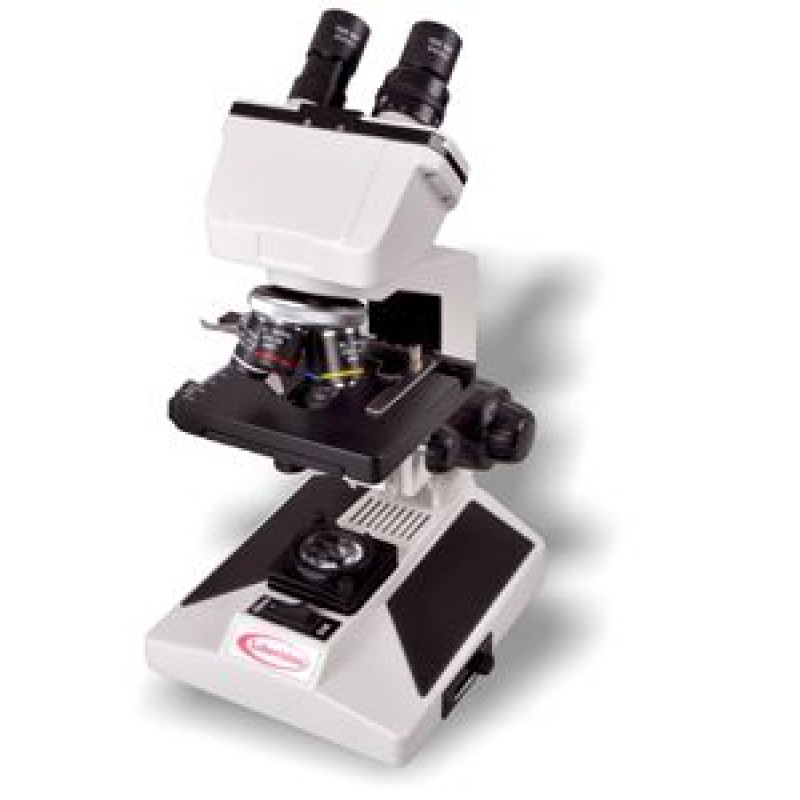

EDUCATIONAL MICROSCOPE COAX 10B
- Views: 223
-
Labovision - Vendor Type: Manufacturer
- Product Code: L000000006
- Availability: In Stock
