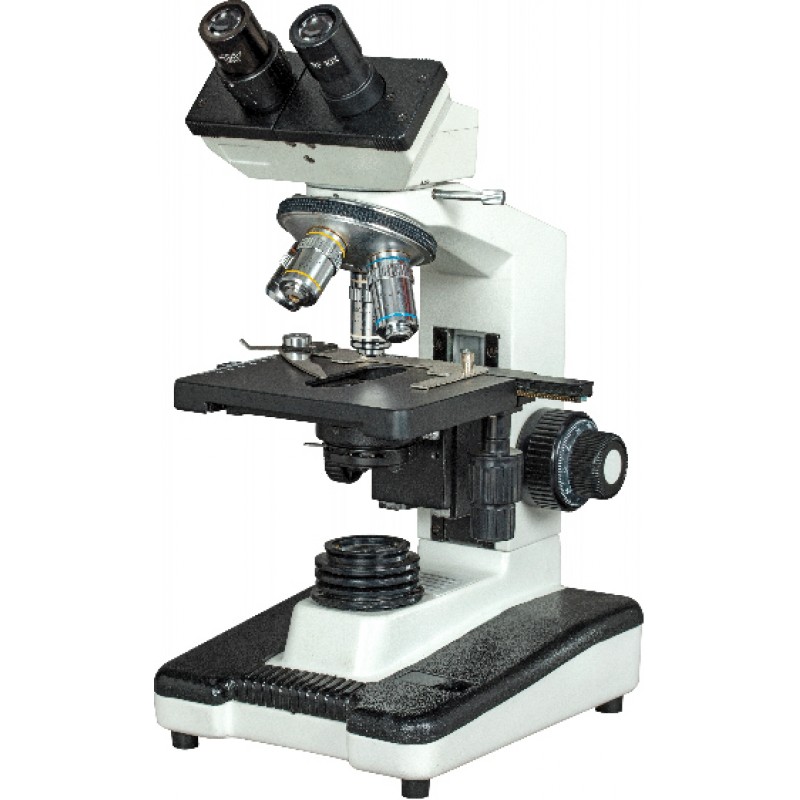

PRE CLINICAL MICROSCOPE

(with built-in Halogen lamp/LED Lamp & KEOWA optics)

(Pathological Binocular Microscope with Co-axial Focusing)

FEATURES:

ü  Bright white light illumination

ü  High performance & crisp sharp

ü  Optics and prisms

ü  Wide field of view with wide prisms

TECHNICAL SPECIFICATIONS:

ü  BINOCULAR OBSERVATION HEAD: Observation head inclined at 45o rotatable at 360º.

        Diopter adjustment ring on ocular tube.

        Interpupillary distance adjustable 55-75mm.

ü  EYEPIECE: WESWOX WIDE FIELD 10x/FOV 18mm (PAIRED) with high point and eyeguards offer maximum resolution and high colour fidelity as all of them are A.R. coated and perfectly designed for a FLAT FIELD.

ü  OBJECTIVES: KEOWA Semi-Plan Achromatic Objectives, anti-fungus treated

NA 0.10, anti-fungus

NA 0.25, anti-fungus

NA 0.5 (Spring Loaded), anti-fungus

NA 1.25 (Spring Loaded) oil immersion., anti-fungus

ü  NOSEPIECE: Dust proof Quadruple nosepiece revolves on ball bearing with rubber grip and positive click stop.

ü  MECHANICAL STAGE: Double layer Mechanical stage size 120mm X 140mm having low positioned co-axial controls on ball bearing with fine vernier graduation. Stage focusing lock.

Cross movement 60mm X 80mm.

ü  FOCUSSING SYSTEM: Low position Co-axial focusing system with TENSION

ADJUSTMENT RING on right side provides a soft and

sophisticated touch to the microscope.

ü  SUB STAGE CONDENSER: Focusable Abbe Condenser centerable NA 1.25 with rack & pinion, aspheric lens, swing out filter holder, Iris Diaphragm with BLUE filter.

ü  ILLUMINATION: Built-in-base illumination system with high intensity 3W white LED light with intensity controlled unit & battery back up Easly replaceable lamp

ü  POWER: Universal power supply (AC input 100V-240V, 50/60 Hz) ISO 9001, CE approved.

ü  PACKAGING: Complete in a STYROFOAM molded box with dust cover, and

other accessories:

WF-15x, WF-5x, Dark field attachment, Wooden Box, Polarizing attachment, Phase contrast attachment, LCD attachment, Camera attachment

MODEL

  OBSERVATION HEAD

PRICE

BXL MONO

Monocular head

18500/-

BXL

Binocular head

20000/-

BXL TR

Trinocular head

22500/-
