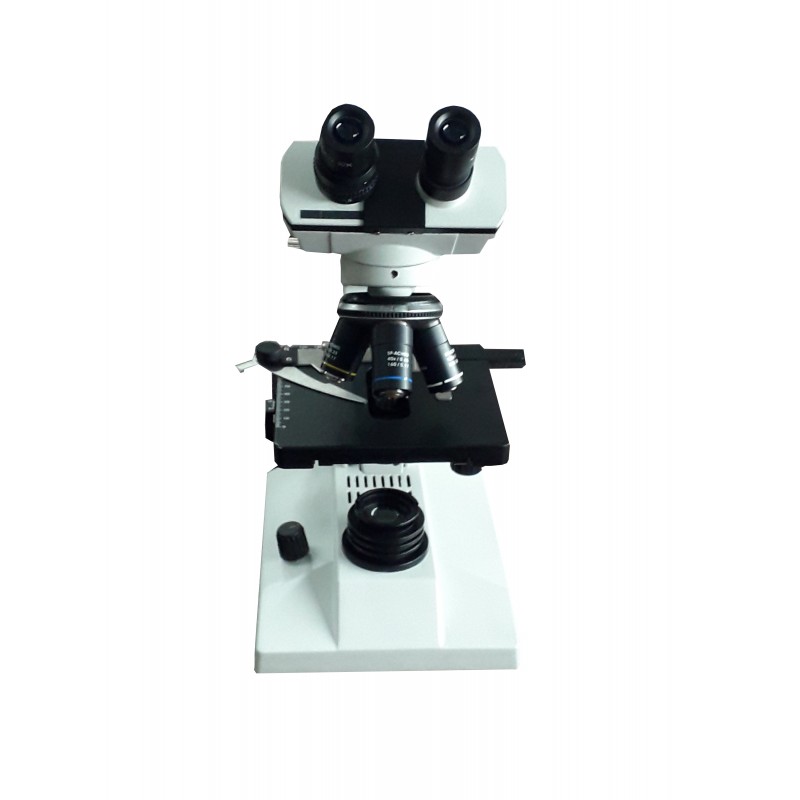

PRE CLINICAL MICROSCOPE

(Built-in Halogen lamp or LED lamp)

TECHNICAL SPECIFICATIONS:

ü  BASE: Single mold sturdy stand with anti rust materials and extended base.

ü  OBSERVATION HEAD: Binocular Observation head inclined at 45o rotatable at 360º.

ü  EYEPIECE: KEOWA Achromotic WIDE FIELD HKW 10x paired with eye guards.

ü  OBJECTIVES: KEOWA  SP Semi Plan Achromatic Objectives, anti-fungus treated

ü  4x/NA 0.10

ü  10x/NA 0.25

ü  40x/NA 0.65 (Spring Loaded)

ü  100x/NA 1.25 (SL, oil immersion)

ü  NOSEPIECE: Quadruple nosepiece revolves on ball bearing with rubber grip and positive click stop.

ü  MECHANICAL STAGE: Right Hand Mechanical stage size 120mm X 140mm having low positioned co-axial controls on ball bearing. Spring clip double specimen holder

ü  Cross X&Y movement 60mm X 80mm.

ü  FOCUSSING SYSTEM: Low position Co-axial graduated coarse & fine focusing system with

ü  TENSION ADJUSTMENT RING provides a soft and sophisticated

ü  touch to the microscope.  Coarse  Movement stroke : 20mm tension

ü  on the right.

ü  SUB STAGE CONDENSER: Focusable Abbe Condenser centerable NA 1.25 with aspheric lens, filter holder, Iris Diaphragm movable on rack & pinion with BLUE filter. Vertical adjustment range: 10mm.

ü  ILLUMINATION: Built-in-base illumination system with 6V 20W Halogen lamp or 3W LED lamp with intensity controlled power supply & day light reflector/mirror.

ü  POWER: Universal power supply (AC input 100V-240V, 50/60 Hz) ISO 9001, CE approved.

ü  PACKAGING: Complete in a STYROFOAM molded box.

Warranty:- 2 years

Optional Accessories:

 WF-15x, WF-5x, Dark field attachment, Wooden Box, Polarizing attachment, Phase contrast attachment, LCD attachment, Camera attachment

MODEL

  OBSERVATION HEAD

PRICE

JXL MONO

Monocular head

14500/-

JXL

Binocular head

16500/-

JXL TR

Trinocular head

18500/-
