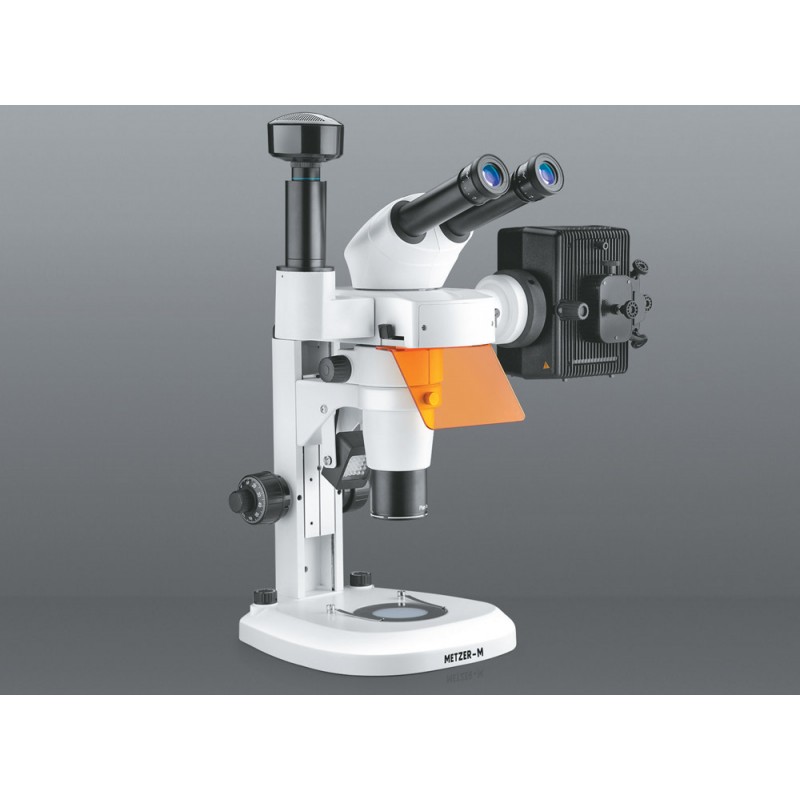

VISION PLUS 8000 - FL ZOOM

Trinocular Observation Head

• Observation head inclined at 20°.

• Diopter adjustment ring on both ocular tube.

• Inter-pupillary distance from 57mm to 75mm.

• Lateral tube for digital camera.

• '8' Inch LCD Screen 360 degree Horizontal and 90° vertical rotatable with android operating system.

• Built in 5.0 camera with HDMI, USB 2.0 Port

Eyepiece

• Focusable extra Wide field 10X (paired) F.O.V. 22mm.

Zooming Range & Ratio

• Zoom 0.8X to 8X with magnification ratioof 1:10.

• Plan achromatic objective 1X.

Magnification Range

• 8 X to 50X.

Working Distance

• 78mm

Mechanical Body

• Track stand with co-axial focusing mechanising.

• Incident and transmitted light system with LEDlamp.

• The system regulated with transformer has intensity control knob.

• On/off switch to provide flexibility to use either both light or any of them.

• Clip for holding specimen.

• Lateral zoom control movement.
