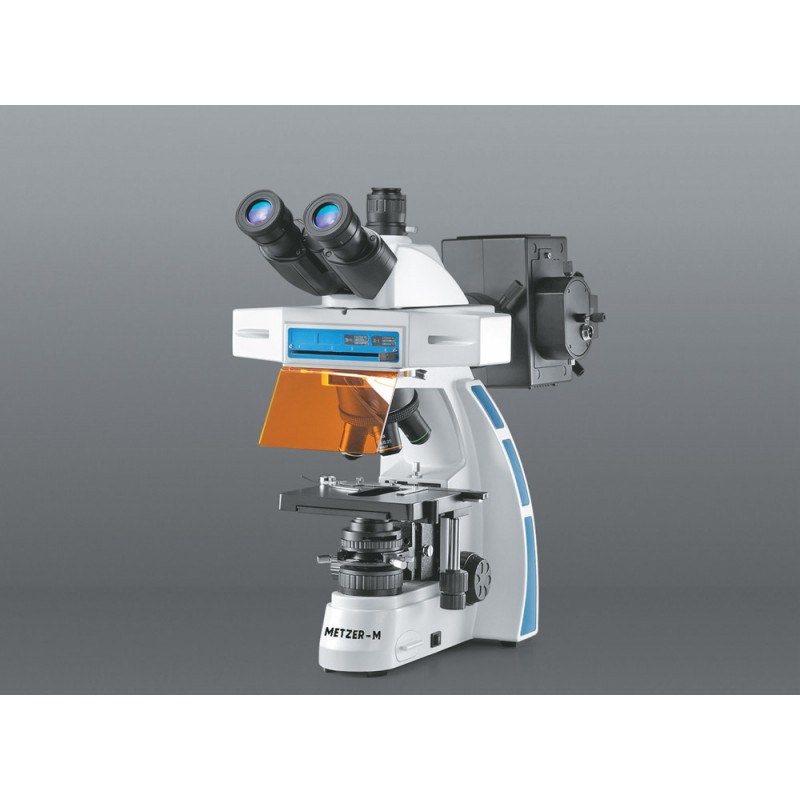

VISION PLUS 8000 - FL STAR

Trinocular Observation Head

• Siedentopf observation head inclined at 30° rotatable at 360°.

• Light path selector lever to direct either full light to observation head or 80% to vertical.

• Vertical phototube for digital photography.

• Inter-pupillary distance from 50mm to 75mm.

• Diopter adjustment ring on ocular tube.

Eyepiece

• Wide field eyepiece 10X (paired) FOV 22mm.

Objectives (Anti fungus coated)

• Infinity objective 4X.

• Infinity objective phase 10X, 40X (S.L.) and Oil 100X (S.L.)

Mechanical Body

• Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING. Fine focusing scale value 0.002mm.

• Reverse angle quintuple nosepiece on ball bearing.

• Mechanical stage is 140mmX160mm.Moving range 80mm X 50mm

• The mechanical stage has low positioned co-axial controls on ball bearing guide ways.

Condenser

• N.A 1.25 Abbe condenser with iris diaphragm and filters.

Excitation Filters

• B Excitation (400-490nm) standard

• G Excitation (510-550nm) standard

Light Source

• Transmitted light source: 3W LED.

• Epi-Fluorescence light source: 100W high pressure mercury lamp.

Standard Accessories

• 100W high pressure mercury lamp. Styrofoam molded pack.
