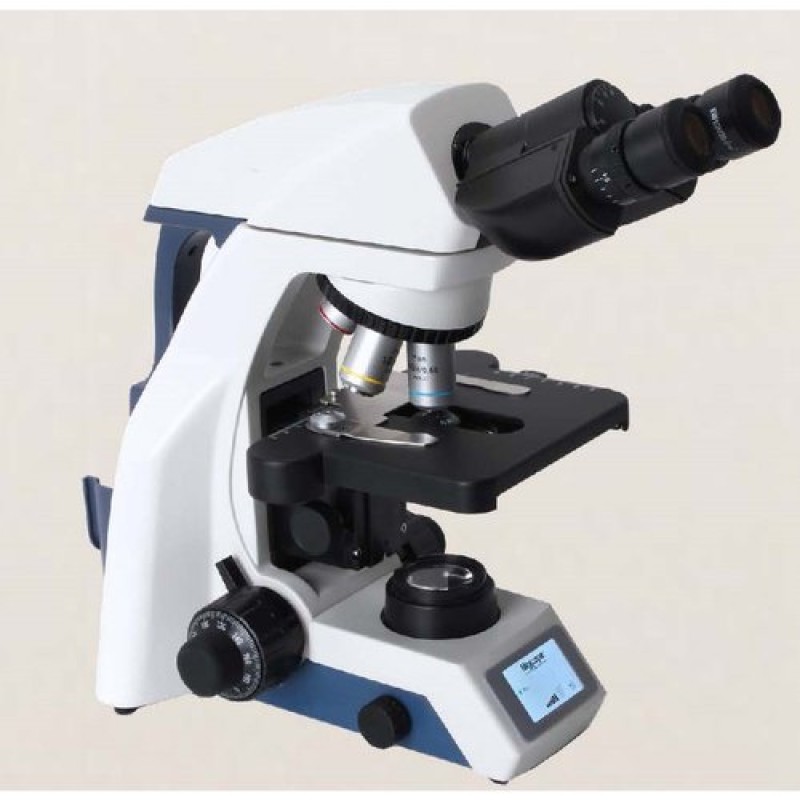

Upright Biological Microscope

Product Details :

Technical Specification:  ecoX microscopes are designed for life sciences, pathological testing and clinical diagnosis, and various microscopic teaching needs. With excellent optical quality, wide FOV objective coated prism leads to clear and reliable imaging. Ergonomic design provides better degree of comfort and user experience, Modular design can realize various observation methods such as bright field, dark field, phase contrast, fluorescence, etc. Provide more possibilities for your scientific research exploration. Easy handling, storage and maintenance with Small footprint

Body: Rugged, sturdy single aluminium die cast having handrest with acid resistant texture painted, ergonomic design, touch point treated, window in arm, handle, hub for power cord, hinged door at base for easy & quick replacement of bulb/LED, intensity controller & on/off switch, rubber feet, fuse at back

Optical System: Infinite optical system, having optical & microscope body corrected for colour corrected, anti-fungal, anti-bacterial coated, multi-layered hard coated, anti-reflection coated optical system, colour coded objectives

Koehler's Illumination: 3.3W S LED life 65,000 hrs. with constant colour temperature at all intensity.

Viewing Head: Binocular inclined at 360, sidentopf head, rotatable through 360, IPD-from 47-78, diopter adjustment (with scale marking) on one or both eyepiece

Nosepiece: Inward tilted, precise quintuple revolving on multiple ball bearing, click stop mechanism, rubber grip

Eyepiece: WF 10X, FOV-20mm, high eye-point, focusable, multilayered coated, high quality, good contrast, abresion free, aplantic, precentered, lockable, with foldable eyegurad, colour compensated.

Mechanical Stage:Rectangular rackless stage, right/left hand low drive coaxial control, horizontal, hard coating, double slide holder, stage size 150×139mm, rack & pinion X-Y movement 75-52mm on belt, stainless steel slide holder, vernier marking on stage

 Objectives: 4X, N.A. 0.10, W.D. 30mm, semi plan, infinite, parfocal & precentered, unbreakable container for storage

10X, N.A. 0.25, W.D. 20mm, semi plan, infinite, parfocal & precentered, unbreakable container for storage

40X, N.A. 0.65, W.D. 0.65mm, semi plan, infinite, parfocal & precentered, spring loaded, unbreakable container for storage

100X, N.A. 1.25, W.D. 0.20mm, semi plan, infinite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage

Focusing: Both side, Co-axial, pre-focusing knob, tension control, upper limit stopper, high sensitivity focus drive with 0.20 mm per revolution, fine adjustment 2.0m/Div, coarse movement 25mm, total movement range 37.7mm

Condenser: Abbe N.A. 1.25 with aspheric lens (light relay) for brightfield, uniform illumination for entire FOV, separate vertical movement from focussing (rack & pinion) with iris diaphragm focusable and swinging filter holder

Power Supply: SMPS based, wide operating voltage range, 90V-240V, 50/60Hz

Standard Accessories: Cleaning cloth

vinyl cover

Immersion oil (10ml)

C-clamp for tension adjustment

Allen keys

Fuses - 2 no's

Instruction manual

Warranty card

Blue Filter (frosted & Plain)

Power Cord (country Specific)

Additional Information:

Delivery Time: 7-8 DAYS
