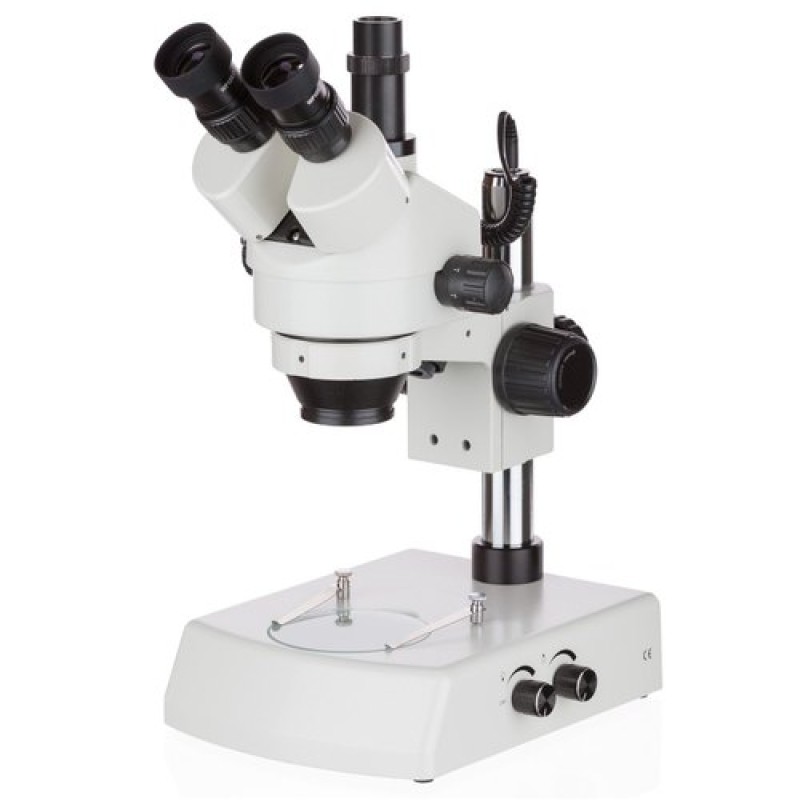

Trinocular Stereo Zoom Microscope

A new and improved model of zoom stereoscopic microscope which can magnify micro object continuously and accurately to show 3 dimensional image for observation studies in health, Medical, Forestry & Zoology department as well as for repair of tiny precision spare parts of electronic and Jewellery. Magnification ranges from 6.3x to 50x

Trinocular Observation Head

• Observation head inclined at 45° rotatable at 360°.
• Vertical phototube for micro photography.
• Diopter adjustment ring on ocular tube (±5).
• Inter-pupillary distance from 52mm to 76mm.

Eyepiece

• Wide field 10X (paired) F.O.V. 22mm.

Zooming Range & Ratio

• Zoom 0.7X to 4.5X with magnification ratio of 1:6.3

Magnification Range

• 7X-45X

Working Distance

• 105mm

Mechanical Body

• Pole stand with fan type base.
• Lateral zoom control movement.
• Reflected & transmitted LED illuminator.
• Clip for holding specimen.
• Base size is 285mm X 238mm.

Illumination System

• Incident and transmitted light systems with LED lamps.
• Both lights are regulated with power supply and has separate brightness controls.

Standard Accessories

• Operating manual, dust cover, guarantee card and styrofoammolded pack.

Additional Information:

• Delivery Time: Ready Stock
