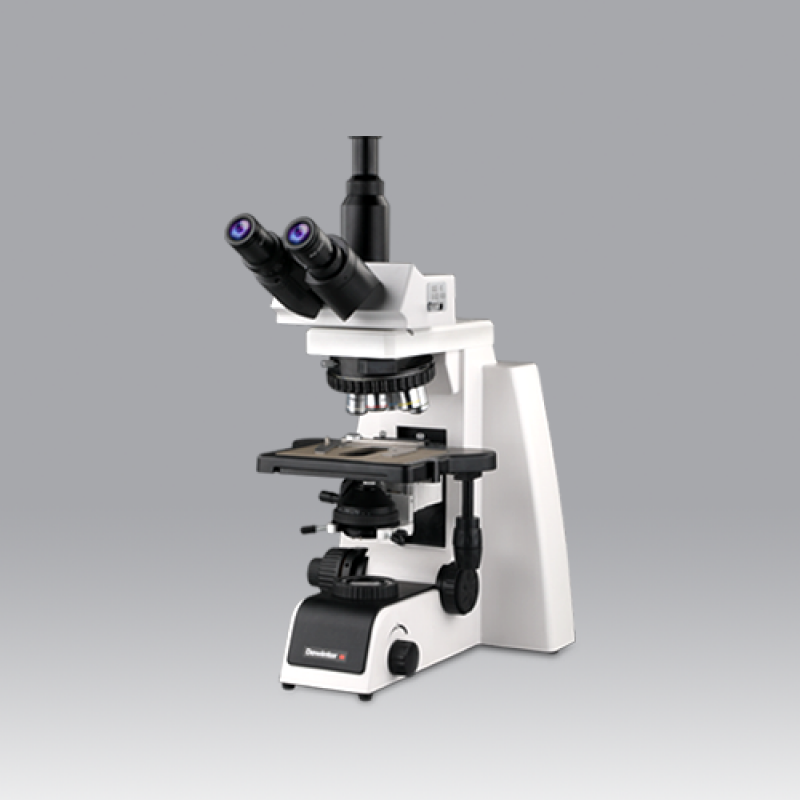

Trinocular Research Microscope Model: Premium

Product Details :

Trinocular Observation Head

• Siedentopf Observation head inclined at 30° rotatable at 360°.
• Vertical phototube for micro photography
• Diopter adjustment ring on ocular tube (±5).
• Inter-pupillary distance from 48mm to 75mm.

Eyepiece (Anti fungus coated)

• Extra wide field 10X (paired). F.O.V. 25mm.Ocular dia 30mm

Objectives (Anti fungus coated)

• CCIS Plan Achromatic 4X
• CCIS Plan Achromatic 10X
• CCIS Plan Achromatic 20X(S.L.)
• CCIS Plan Achromatic 40X(S.L.)
• CCIS Plan Achromatic 100X Oil(S.L.)

Mechanical Body

• Co-axial focusing control with large knob, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
• Reverse angle sextuple nosepiece revolving on ball bearings.
• Reckless Mechanical stage size 180mm x 160mm & having low positioned co-axial controls on ball bearing guide ways.
• Fine div 0.001mm, coarse stroke 37.7mm per rotation, Fine stroke 0.1mm/rotation. Moving range 24mm.

Sub Stage Condenser

• Swing out front lens, abbe condenser N.A. 0.9/1.25, filter holder and iris diaphragm.

Illumination System

• Kohler illumination system with 3W LED external illuminator. Iris diaphragm on collector lens. Aspherical collectors. Brightness control knob.

Standard Accessories

• 12V/100W halogen tungsten bulb, dust cover, guarantee card, blue filter, Operating manual and Styrofoam molded pack.
