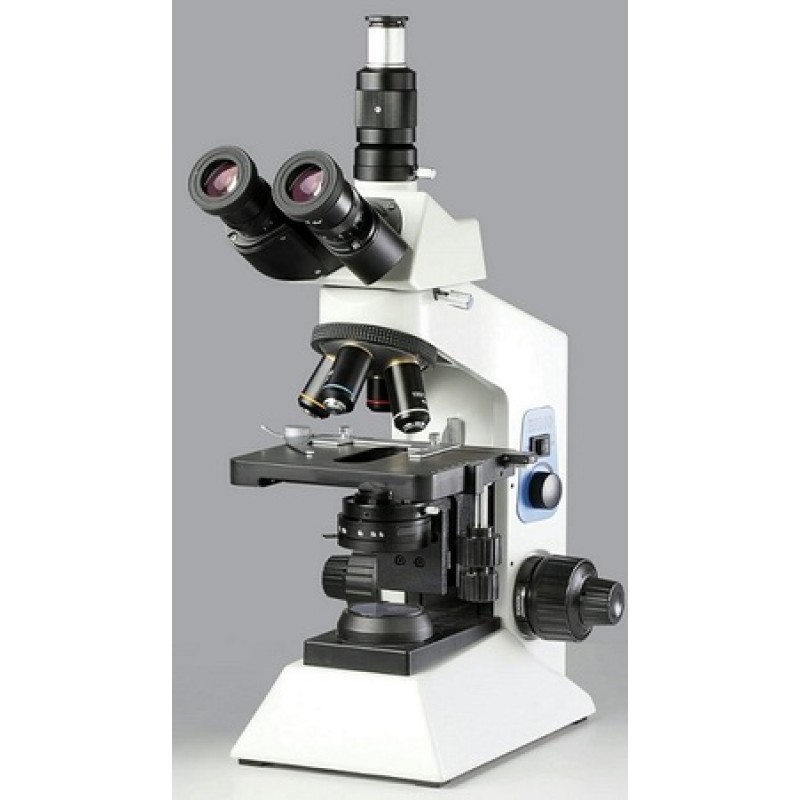

Trinocular Microscopes

Product Details :

comprises top quality DIN standard optics, latest in techniques to achive the uncompromising performance in comparison with any of the imported Microscope.

STANDARD FEATURES:

• 45º inclined with 360 degree rotatable trinocular tube.
• Co-axial built in Mechanical stage with fine vernier graduation, designed with convenient coaxial adjustment for Jerk free smooth slide manipulation through 50 X 75 mm.

• Dust proof quadruple/quintuple ball bearing revolving nose piece with positive click stops.

• Co-axial coarse & fine focusing adjustment knobs. Fine motion, graduated to .002 mm.

• Sub stage Abbe type N.A. 1.25 condenser with rack and pinion, continuously variable iris diaphragm with built in swing out filter holder.

• Built in Illumination LED with intensity control. (Battery backup optional)

• Steple Grey, chemical resistant, back-on finish

• Exclusive preset focus lock prevents damage to valuable slides and objectives.

• With dust cover packed in styrofoam packing.


OPTICAL COMBINATION:

• EYE PIECES: W.F. 10X/18mm (Paired) & P7X
• OBJECTIVES: 4x, 10x, 40x s/l & 100x s/l Oil [Achromatic]


Trinocular Microscope with micro imaging system, complete with PC having CCD Camera, coloured Printer which can be used for Class Room Teaching also, Recording of Images/Slides, instant Printout of images as well as can be used as complete office Computer system for general purpose
