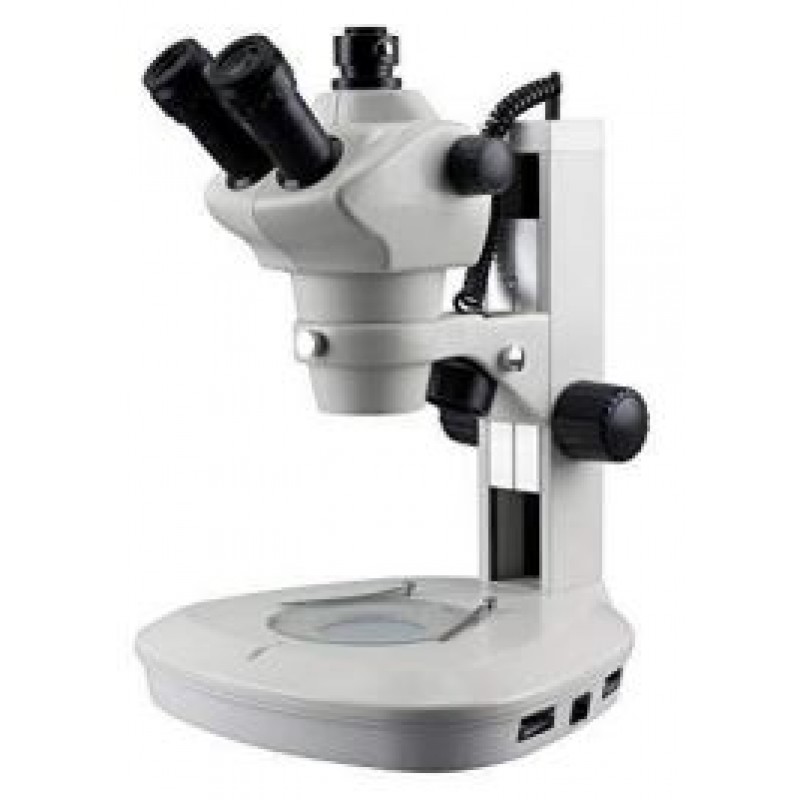

Stereo Zoom Microscope - Trinocular - III

Product Details :

Trinocular Observation Head Observation head inclined at 45° rotatable at 360°. Vertical phototube for micro photography. Diopter adjustment ring on ocular tube (±5). Inter-pupillary distance from 54mm to 76mm.

Eyepiece

• Wide field 10X (paired) F.O.V. 22mm.

Zooming Range & Ratio

• Zoom 0.7X to 4.5X with magnification ratio of 1:6.4

Magnification Range

• 7X - 45X (70 to 450 Magnification)

Working Distance

• 100 mm

Mechanical Body

• Track stand with fan type base.
• Lateral zoom control movement.
• Clip for holding specimen.
• Base size is 285mm X 238mm

Illumination System

• Incident and transmitted light systems with LED lamps.
• Both lights are regulated with power supply and has separate brightness controls.

STANDARD ACCESSORIES

• Operating manual, dust cover, guarantee card and Styrofoam molded pack.
