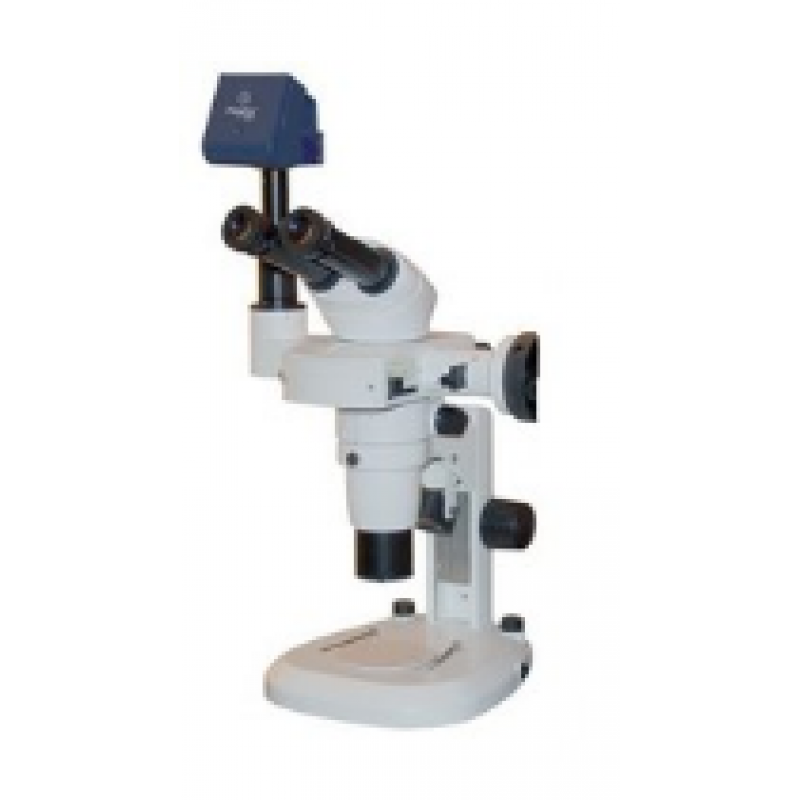

Stereo Zoom Microscope

Product Details :

Technical specification: series stereo zoom microscopes with parallel APO optical system generate three-dimensional and laterally precise images for your microscope applications. These microscopes provide large object fields and allow extended working distances. Stereo Microscope is perfect for the observation of large biological samples like leafs or tissues. In the field of materials microscopy, stereomicroscopes and stereo zoom microscopes are valuable tools for the inspection or analysis of materials surfacesBody: Plain focussing stand, rugged, ergonomic design, touch point treated, anti mould, anti electrostatic, acid resistant texture painted, rubber feet & stage clips, optionally lenght upto 300mm avialable extendable with torque adjustment

Optical System: APO chromaticcorrected, parallel/Greenough optics zoom system, resolution upto 600 lines per mm (stereoscopic angle 11°)

Total Magnifications: 4X to 384x (using different combinations of eyepeice, zoom lens & objectives-optionally available)

Standard Zoom Lens: 0.8X to 6.4X continously zoom with steps of 0.8x, 1X, 2X, 3X, 4X, 5.0X & 6.4X

Zoom ratio: 1:8 with standard zoom from 0.63X to 5X

Eyepeices: High eye point, WF 10X, FOV-20mm, multilayered coated, high quality, good contrast, aberration free, aplantic, lockable, diopter adjustment(± 5), reticle lead

Head: Binocular head, 20° inclined, low eye-level, IPD 48-75mm

Focusing : Plain focusing

Illumination: 3W LED epi-illumination (life hrs.10,000), transmitted & reflected, separate intensity controller & on/off switch

Standard Accessories: Cleaning cloth

Vinyl cover

Instruction manual

Warranty card

Power Cord (Country Specific)

B/W plastic plate D=84x5 mm thickness

Additional Information:

• Delivery Time: 5-6 days
