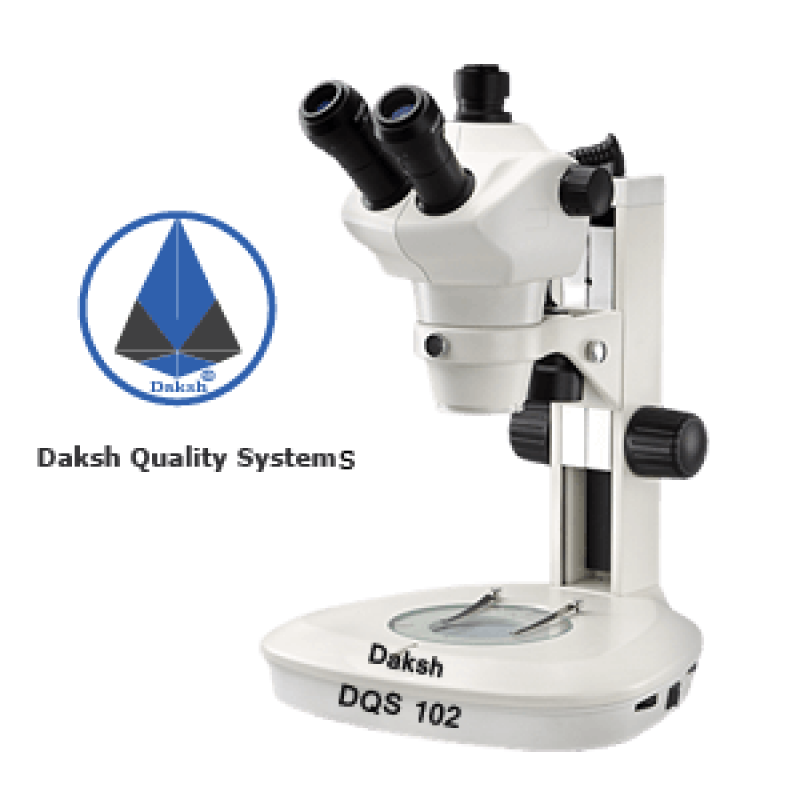

Stereo Zoom Microscope- DQS 102

Product Details :

Trinocular Observation Head

• Observation head inclined at 45° rotatable at 360°.
• Vertical phototube for micro photography
• Diopter adjustment ring on ocular tube (±5).
• Diopter adjustment ring on ocular tube (±5).
• Inter-pupillary distance from 52mm to 76mm.
• Eyepiece
• Wide field 10X (paired) F.O.V. 20mm
• Zooming Range & Ratio
• Zoom 0.8X to 5.0X with magnification ratio of 1:6.3
• Magnification Range
• 8X-50X
• Working Distance
• 115 mm
• Mechanical Body
• Track stand with fan type base
• Lateral zoom control movement
• Clip for holding specimen
• Base size is 285mm X 238mm
• Illumination System
• Incident and transmitted light systems with LED lamps
• Both lights are regulated with power supply and has separate brightness controls.
• Standard Accessories
• Operating manual, dust cover, guarantee card and styrofoam molded pack.
