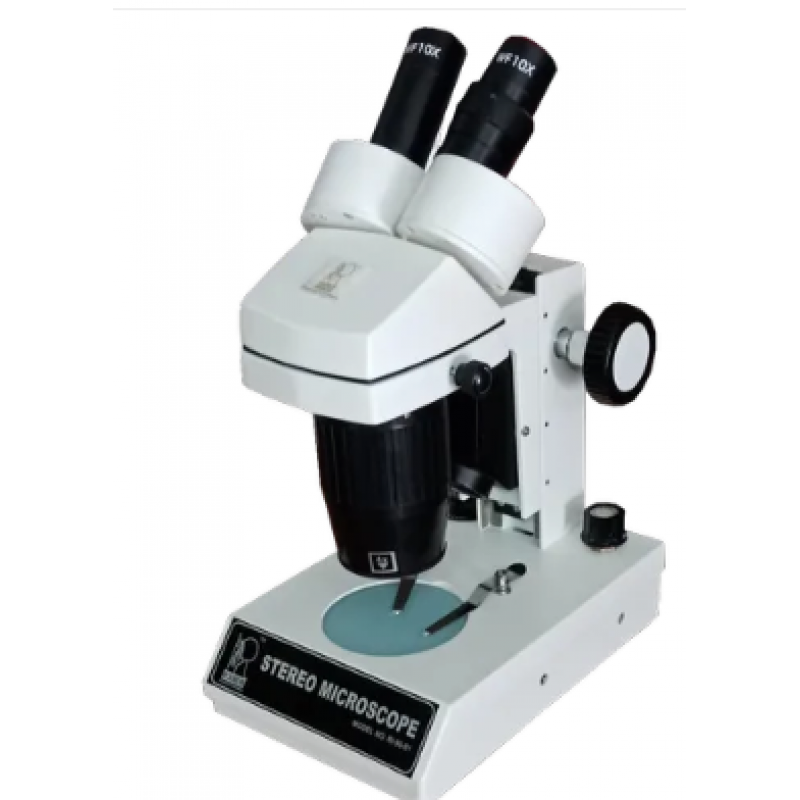

Stereo Microscope
Product Details:
Binocular head is inclined at 45°, rotated through 360°, can be locked in any position by using thumb screw. The interpupillary distance cab be adjusted between 55 to 75mm and working distance is 65mm in 40x magnification. Diopter compensation can be made by using the left eyepiece ocular tube. The microscope has a set of two standard achromatic objectives 2x & 4x.
Low and high powered objectives are selected by rotating the nosepiece through 90°, having parafocal magnification. Extra wide field eyepieces WF 10x are provided.
Standard magnification 20x and 40x gives flatfield, erect three dimensional, crisp and sharp images. Focus adjustments can be made by means of paired knobs located on each side of the stand. A Glass stage plate with two stage clips is provided with the microscope.
Transmitted & incident lights are built in the stand. The lamp can be switched on separately or together, 6V/20W halogen lamps.
