Stereoscopic Microscope
With large field of view and increased depth of focus, STM-80 is ideally suitable for multipurpose application in the examinations of large embryological specimens, planktons, fungi, inspection of micro-precision parts.
Interchangeability of highly corrected achromatic objectives provide wide magnifications ranges.
Inclined head for comfortable viewing fitted with highest quality prism for good contrast & image.
Dual light stand combining bright transmitted and incident illumination provides an even field of illumination.
Specifications:
Warranty Information 2 Years parts.
| Body | Heavy base fitted with ground glass or milky glass plate for placing the slides with clips | |
| Illumination | Built-in illumination system incident and transmitted both the lights can be used individually or simultaneously. Suitable transformer for 6V-15W lamp fitted in base. |
Magnification | 30X or 45X | |||||||
| Observation Head | Inclined Binocular head, rotatable 360o with diopter adjustment mechanism, adjustable inter-pupillary distance. | |||||||
| Eyepiece | Wide field eyepieces 10x and 15x (Paired) interchangeable. | |||||||
| Objectives | Highly corrected achromatic objective 2x & 4x revolving on turret mount. | |||||||
| Working Distance | 150mm | |||||||
| Focusing | Fine focusing by rack and pinion motion. | |||||||
| Packaging contents | Complete in a plywood cabinet. |

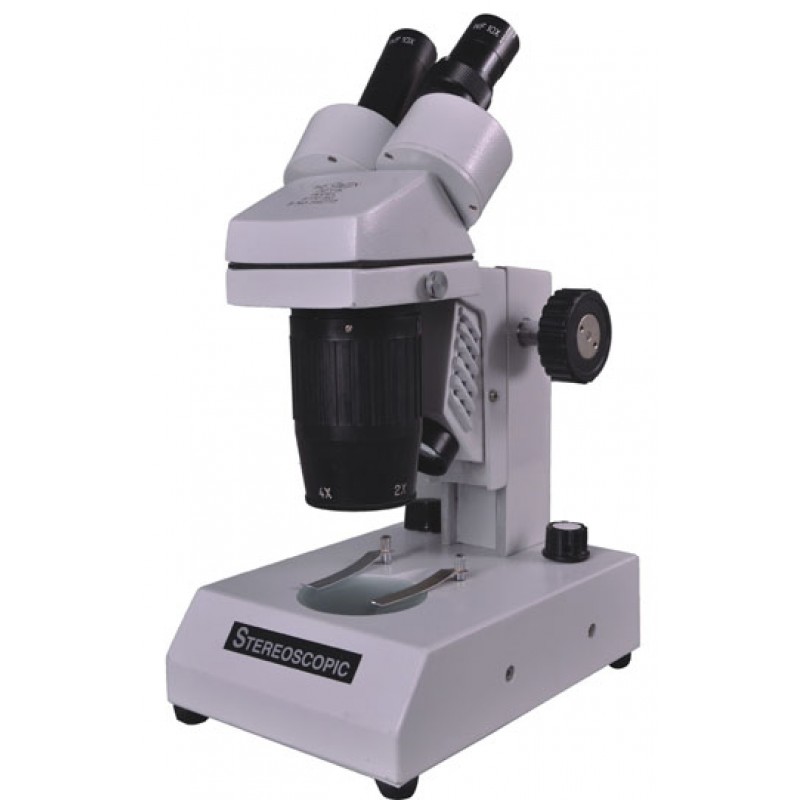

Stereoscopic Microscope STM-80
- Views: 305
-
The Western Electric and Scientific Works - Vendor Type: Manufacturer, Exporter
- Product Code: WESWOX0046
- Availability: In Stock
- ₹0
