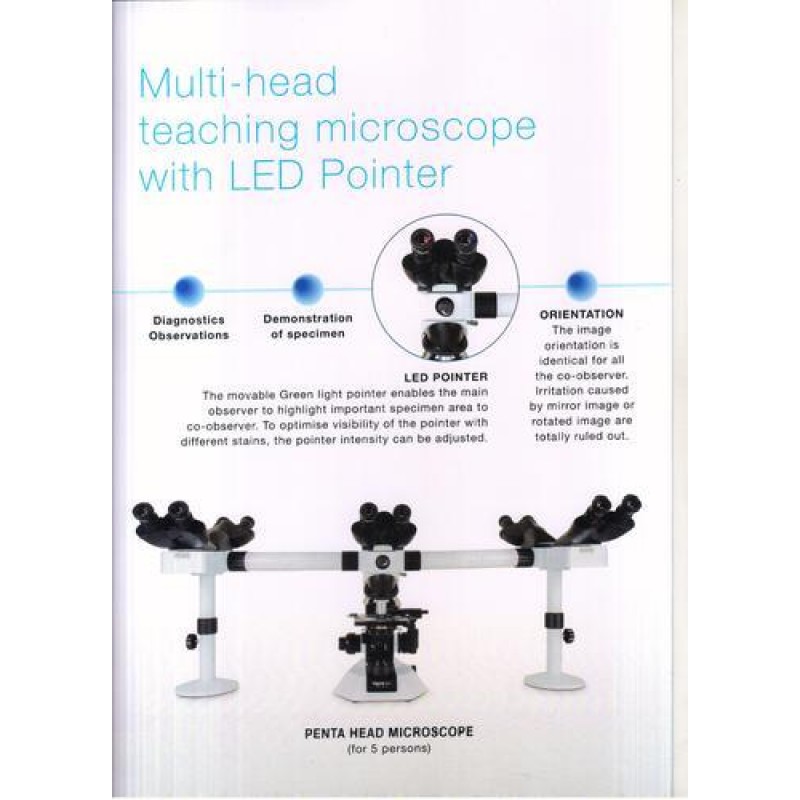

Penta Head Microscope, MLXi Plus
Product Details:
Specifications:
| Minimum Order Quantity | 1 Piece |
| Model | MLXi Plus |
| Brand | Magnus |
| Stand | Cast Alloy Aluminum |
| Objective | Plan 4x, 10x, 40xR & 100xR oil |
| Eyepieces | Extra wide field focusable 10x eyepieces with a 22 mm field of view and eyeguards. Eyepieces accept |
| Focus System | Coaxial Coarse and Fine Focusing knobs on both sides. |
| Mechanical Stage | Single layer mechanical Stage, area 125x145 mm, movement range 76x50mm, double slide holder |
| Illumination | Illumination system, LED 3W (life time 30000 working Hours) |
| Condenser | Centerable abbe condenser with Iris diaphragm (NA 1.25) focusable with Rack & Pinion |
Specifications:
| Body | Aluminum Die cast body with critical movement based on ball bearing & wire guide thereby ensuring smooth & Precise movement |
| Viewing Head for Main Observer | Siedentopf design Trinocular Head Inclined at 30 Deg , Interpupillary Distance 48-75m with Diopter Setting – 1 No. |
| Viewing Head for Co-observers | Siedentopf design binicular Head Inclined at 30, Interpupillary Distance 48-75mm with Diopter setting – 4 Nos. |
| Siedentopf design bincolular Head Inclined at 30 Deg, Interpupillary Distance 48-75mm with diopter setting – 1 No. | |
| Penta Head Attachment | Stand for support - Two nos. |
| LED pointer attachment - One no. | |
| Connecting fitting - Two nos. | |
| The co observers gets the same orientation of image as that of main observation. | |
| Dual Head Attachment | Stand for support - One no. |
| LED pointer attachment - One no. | |
| Connecting fitting - One no. | |
| The co observers gets the same orientation of image as that of main observation. |
Additional Information:
- Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A
Penta Head Microscope, MLXi Plus
- Views: 172
- Product Code: MLXi-Plus
- Availability: In Stock
- ₹0
