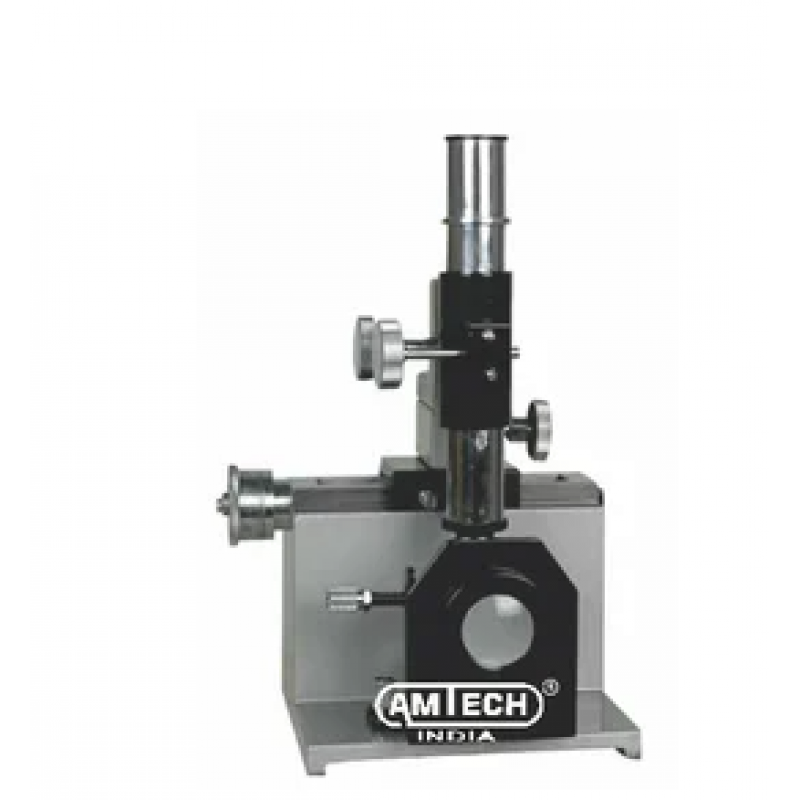

Newton Ring Microscope
Product Details:
The base is cast iron with the top machined. The microscope is mounted on a travelling carriage sliding on the top of the instrument and can be clamped at any position . The Brass scale is graduated in mms and travels 15 mm vernier reading to 0.02 mm, with rack and Pinion arrangement .Final readings are taken with a Micrometer screw provided for the purpose.
