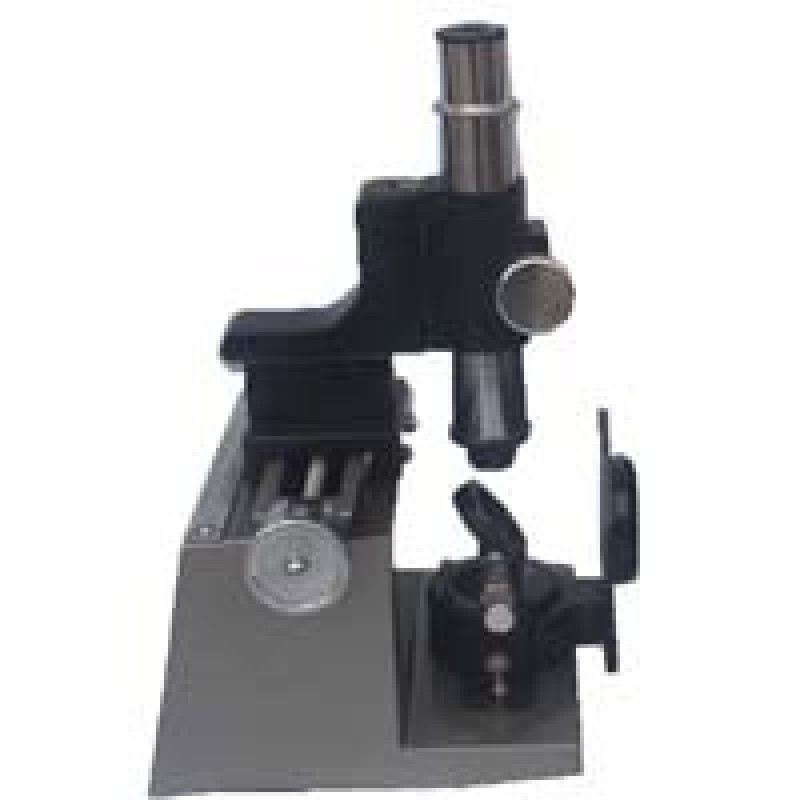

‘GOKO’ NEWTON RING MICROSCOPE
Model : NRM
| Stand / Body | Duly machined heavy rigid C.I. cast body |
| Movement | Travelling microscope with XYZ axes movement |
| Horizontal Scale | ½ mm graduated with every centimeter numbered |
| Least Count | Micrometer head least count 0.001cm |
| Fine Focusing | Microscope fine focusing by rack and pinion system |
| Objective | Achromatic high resolution FL 75mm |
| Eyepiece | 10x with cross hair |
| Newton Ring Assembly | Consisting of optically plane glass plate and 100cm plano-convex lens mounted in frame with pressure screws system. An adjustable plane glass inclined at 45° so that light fall properly on Newton ring apparatus |
| Packing | Plywood box with lock and key |
| Optional | Sodium Light Source |
Newton Ring Microscope
- Views: 462
-
Goko Manufacturers - Vendor Type: Manufacturer, Supplier
- Product Code: GM00000007
- Availability: In Stock
- ₹0
