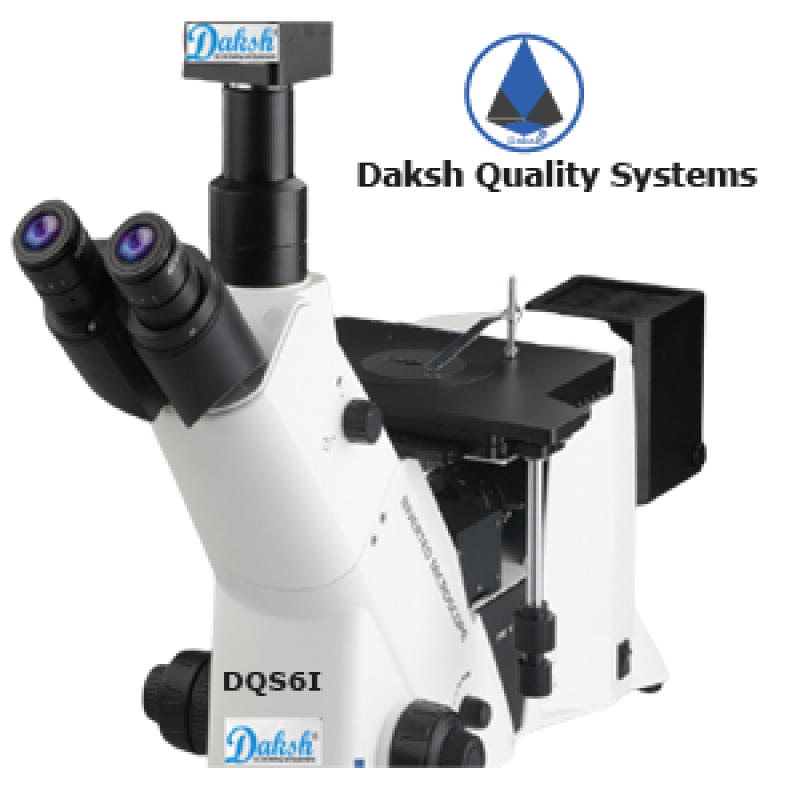

Metallurgical Microscopes Model:DQS 6I

Product Details :

TRINOCULAR OBSERVATION HEAD

• Siedentopf observation head inclined at 45°.
• Vertical phototube for micro photography light split (80:20).
• Diopter adjustment ring on ocular tube (±5).
• Interpupillary distance from 52mm to 75mm.

EYEPIECE

• Wide field eyepiece 10X (Paired) FOV 22mm

OBJECTIVES (INFINITY CORRECTED, ANTIFUNGAL,Wide View)

• M Long Working Distance Plan Achromatic 10X
• M Long Working Distance Plan Achromatic 20X
• M Long Working Distance Plan Achromatic 50X
• M Long Working Distance Plan Achromatic 100X Dry

MECHANICAL BODY

• Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
• Quadruple nosepiece on ball bearing.
• Mechanical stage is 242mmX200mm
• The Mechanical stage has low positioned co-axial controls on ball bearing guide ways.
• Polarizing Outfit
• Analyser rotatable at 360 degree . polarizer and analyser can be moved out of optical path

MECHANICAL BODY

• Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
• Quadruple nosepiece on ball bearing.
• Mechanical stage is 242mmX200mm
• The Mechanical stage has low positioned co-axial controls on ball bearing guide ways.

ILLUMINATOR

• The Epi-Koehler’s illuminator has 12V 100W halogen lamp adjustable brightness.
