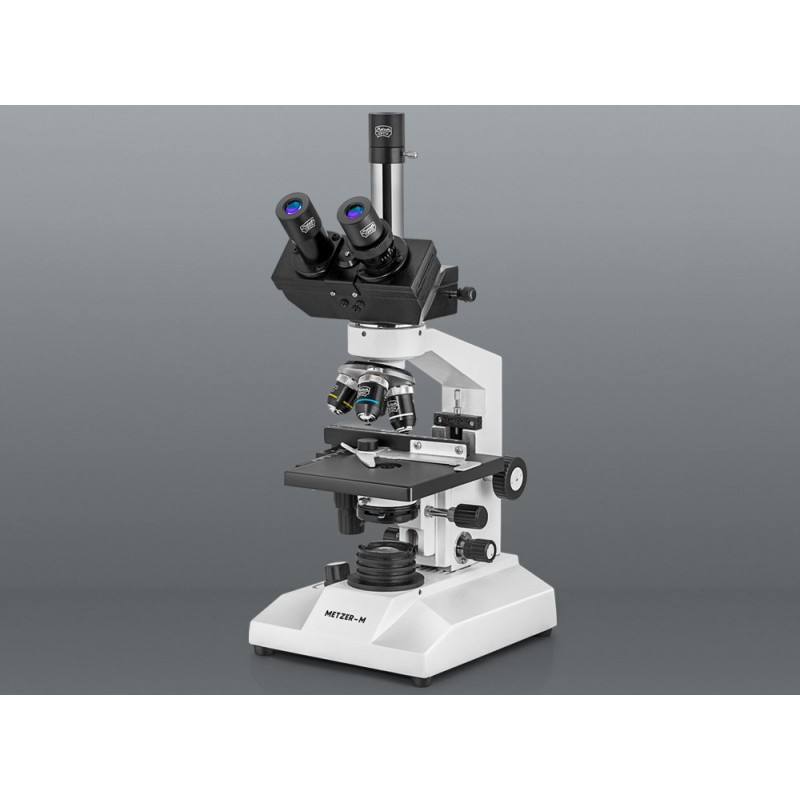

METZER – M TRINOCULAR RESEARCH MICROSCOPE MODEL METZ – 779
Product Details :
- Magnification - 50x – 1000x.
- Observation - Trinocular 45˚, 360˚ rotatable, with interpupillary and diopter adjustment.
- Stand - A rigid & heavy stand.
- Focusing - Coarse and fine focusing by conveniently placed separate knobs 1 div. 0.002 mm.
- Stage - Horizontal Mechanical stage 120 x 140 mm. with fine vernier graduation. Designed with convenient co–axial adjustment for slide manipulation through 50 x 70 mm.
- Illumination - The illuminator incorporated 3W LED lamp and has adjustable brightness.
- Condenser - Sub stage Abbe filter holder N.A. 1.25 condenser with Iris diaphragm and swing out filter holder focusable by rack & pinion.
- Nose Piece - Quadruple revolving nose piece with positive click stops.
- Objectives - Achromatic 5x, 10x, 45x & 100x oil (SL).
- Eye Pieces - W.F. 10 x Anti Fungus Coated.( Paired) F.O.V.18 MM.
