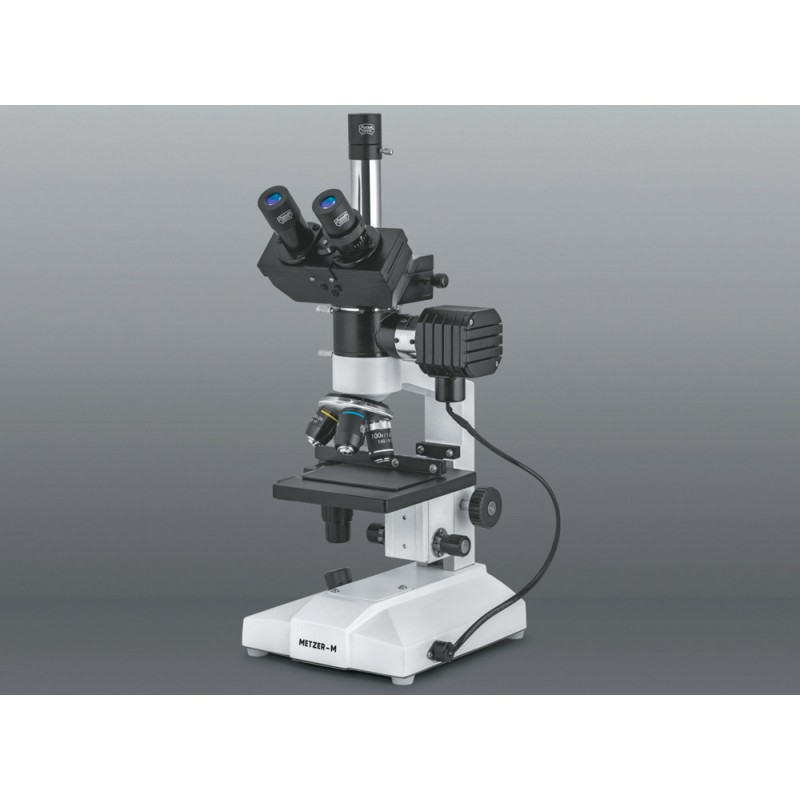

METZER - M TRINOCULAR METALLURGICAL MICROSCOPE MODEL METZ – 780

Specifications:

• Magnification - 50x – 1000x.
• Observation - Trinocular Head inclined at 45 ̊ and rotatable 360 ̊.
• Stand - A rigid and stable stand.
• Mechanical Stage - Horizontal Mechanical stage 120x140 mm. with fine vernier graduation. Designed with convenient co – axial adjustment for specimen manipulation.
• Focusing - Coarse and fine focusing by conveniently placed separate knobs 1 div. 0.002mm.
• Illumination - Incident bright light through Epi – illuminator 6V – 20W Halogen lamp with Iris diaphragm and filter slot. Continuously variable luminosity.
• Nose Piece - Quadruple revolving Nose piece with positive click stops.
• Objectives - Achromatic – M5x, M10x, M45x & M100x oil.
• Eye pieces - Wide field 10x.
