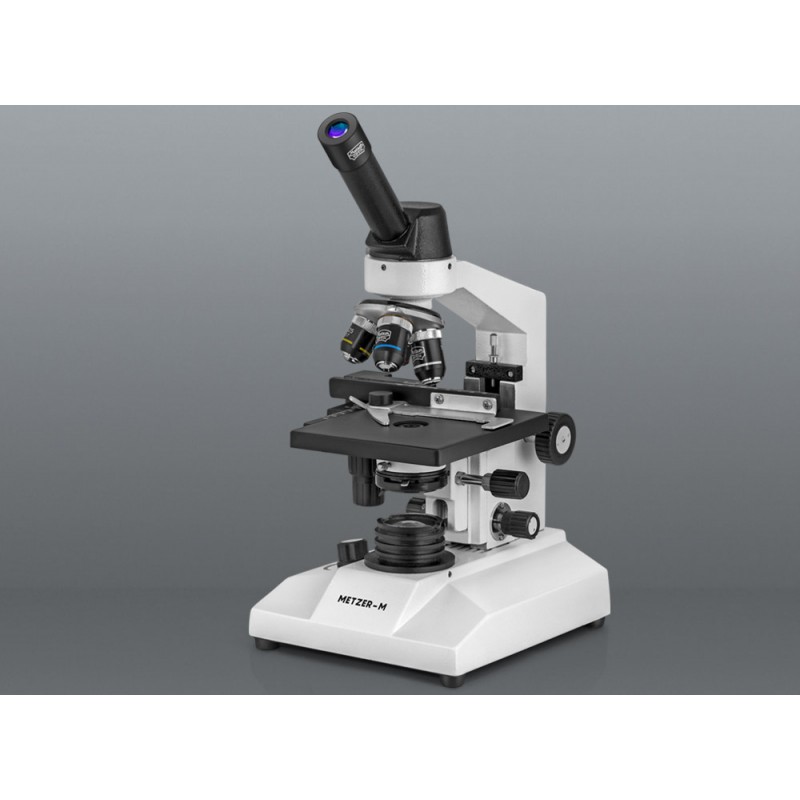

METZER – M MONOCULAR RESEARCH MICROSCOPE MODEL METZ – 777
Product Details :
- Magnification - 100x – 1000x
- Observation - Monocular tube 45˚ rotatable through 360˚.
- Stand - A rigid & heavy stand.
- Focusing - Coarse and fine focusing by conveniently placed separate knobs 1 div. 0.002 mm.
- Stage - Fixed square stage size 120 x 140 mm. with co-axial graduated Mechanical stage for X & Y movements up to 55mm to 75mm.
- Illumination - The illuminator incorporated 3W LED lamp and has adjustable brightness.
- Condenser - Sub stage Abbe filter holder N.A. 1.25 condenser with Iris diaphragm and swing out filter holder focusable by rack & pinion
- Nose Piece - Triple revolving nose piece with positive click stops
- Objectives - Achromatic 10x, 45x & 100x oil (SL).
- Eye Pieces - W.F. 10x Anti Fungus Coated.
