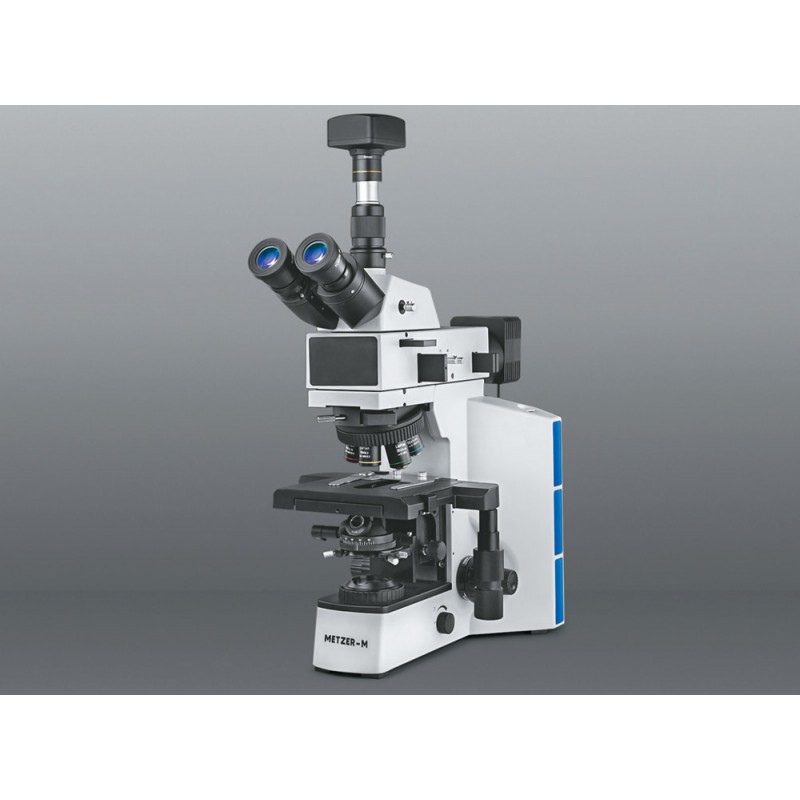

METZER - M CO-AXIAL TRINOCULAR RESEARCH METALLURGICAL MICROSCOPE VISION PLUS - 5000 TMM (PRO)
Specifications:
- Magnification - 50x to 500x.
- Viewing Head - Seidentopf Trinocular Head inclined 30 ̊ Rotatable 360 ̊, Interpupillary Distance 50 – 75 mm. Vertical phototube for micro photography.
- Mechanical Stage - Large graduated RECKLESS mechanical stage with low drive co – axial controls for X–Y movements Stage Size 87mm x 167mm.
- Focusing - Co-axial focusing control with large knob, Pre-Focusing Lever & Tension.
- Illumination - 5W LED, Warm color, Koehler's with illumination with oblique device, centre adjustable field and aperture diaphagram.
- Nosepiece - Reverse angle quintuple nosepiece on ball bearings for polarizer & DIC attachments.
- Objectives - LWD Plan Achromatic Metallurgical Objective 5x, 10x, 20x, 50x (S.L.)
- Eye Pieces - Extra wide field 10X (paired). F.O.V. 25mm. Ocular dia 30mm.
- Sub- Stage Condenser - Swing out front lens, abbe condenser N.A. 0.9/1.25, filter holder and iris diaphragm.
- Filters - Blue filter
