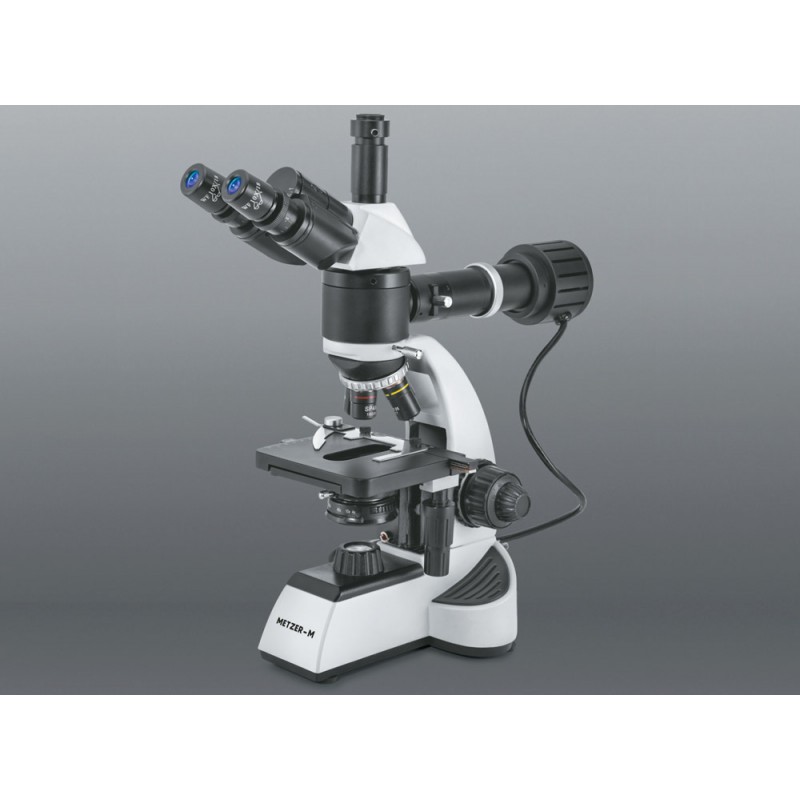

METZER - M CO-AXIAL TRINOCULAR RESEARCH METALLURGICAL MICROSCOPE VISION PLUS – 5000 TMM (ELITE)

Specifications:

• Magnification - 50x to 1000x.
• Viewing Head - Seidentopf Trinocular Head inclined 30 ̊ Rotatable 360 ̊, Interpupillary Distance 50 – 75 mm.
• Mechanical Stage - Large graduated mechanical stage with low drive co – axial controls for X–Y movements Stage Size 142 x 134 mm. Travel 76 x 50 mm.
• Focusing - Co – axial coarse and Fine Focusing Knobs.
• Illumination - Epi - illumination 6V/20W Halogen Lamp (Reflection illumination System) & Transmitted LED 3W/Halogen 6V/20W (Optional).
• Nosepiece - Quadruple reversed mounted nosepiece.
• Objectives - Long working distance plan objectives : 5x, 10x, 45x & 100x Oil.
• Eye Pieces - Wide Field eye piece 10x – 18x mm.
• Filters - Blue, Ground Glass.
• *Also available with Binocular Head – MODEL - 5000 BMM (ELITE).
