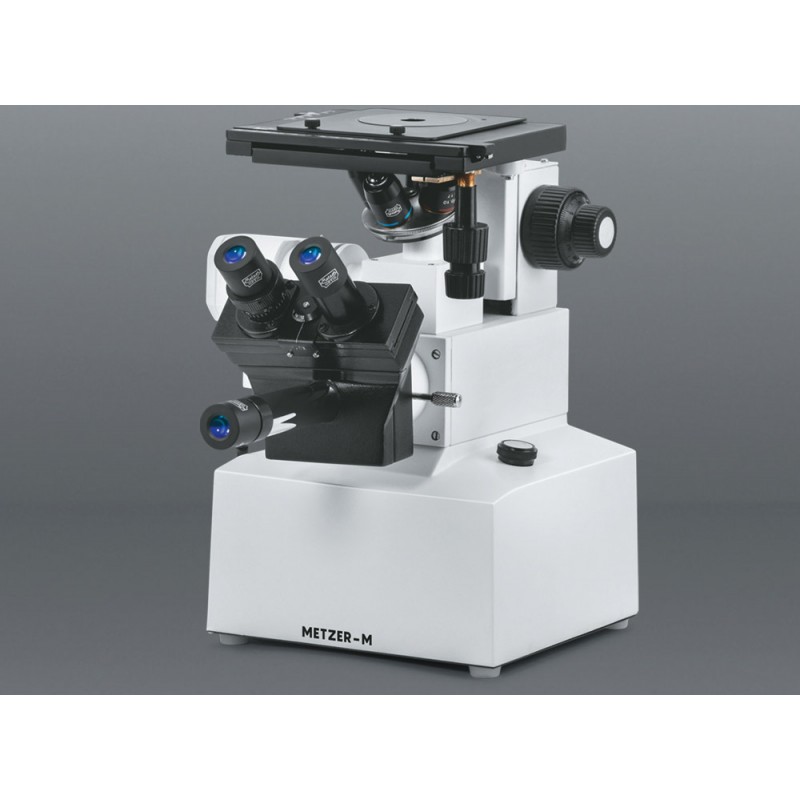

METZER - M CO - AXIAL INVERTED TRINOCULAR METALLURGICAL MICROSCOPE VISION PLUS - 5000 ITM
Product Details :
- Viewing Head - Trinocular Observation head conveniently inclined at 45˚.
- Magnification - 50x - 450x.
- Mechanical Stage - Large graduated mechanical stage with low drive co – axial controls for X – Y movements on ball slides.
- Focusing - Co – axial coarse & fine focusing module with slides travelling on ball bearing guide ways.
- Illumination - Incident light through Epi – illuminator 12V – 50W Halogen lamp with field aperture diaphragm and filter slot. Continuously variable luminosity control through built in electronic transformer. Continuously variable luminosity control through built in electronic transformer.
- Objectives - Achromatic flat field metallurgical corrected and anti – mount fungus M5x, M10x, M20x & M45x.
- Eye pieces - Compensating High eye point wide field eye piece 10x.
- Filters - Green & Blue.
