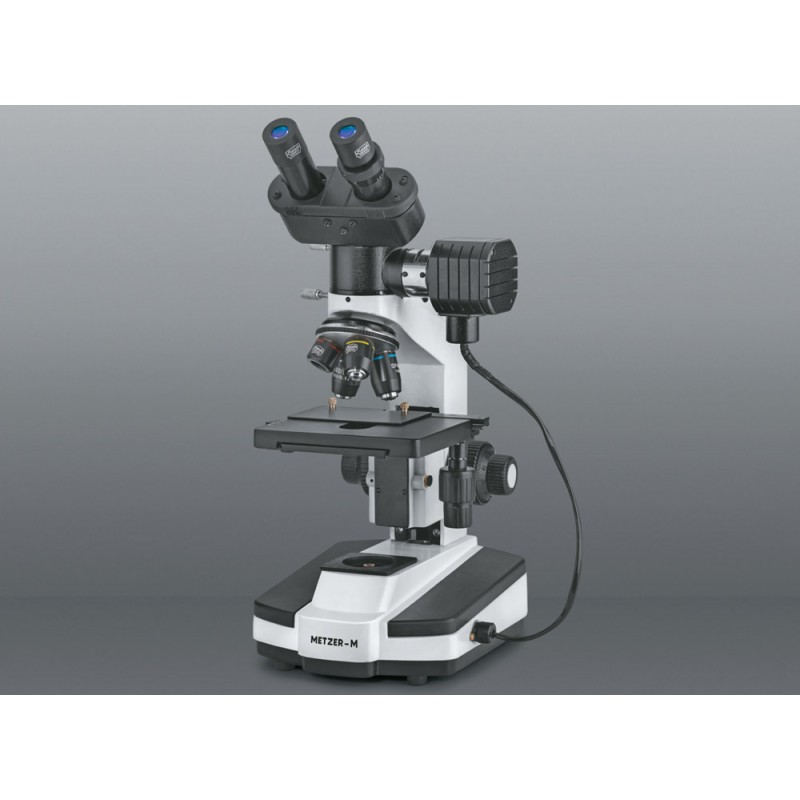

METZER - M CO-AXIAL BINOCULAR RESEARCH METALLURGICAL MICROSCOPE VISION PLUS - 5000 BMM
Specifications:
- Magnification - 50x to 1000x.
- Viewing Head - Binocular Observation head conveniently inclined at 45 ̊.
- Mechanical Stage - Large graduated mechanical stage with low drive co – axial controls for X–Y movements on the ball slides.
- Focusing - Co – axial focusing module with slides travelling on bearing guide ways.
- Illumination - Incident light through Epi – illuminator with field aperture diaphragm and filter slots. Continuously variable luminosity control through built in electronic transformer.
- Nose Piece - Quadruple revolving nosepiece for quick magnification change with positive click stops for proper centering.
- Objectives - Achromatic Flat – field metallurgical corrected and anti mount fungus M5x, M10x, M45x, & M100x (oil).
- Eye pieces - Compensating High eye point wide field eye piece 10x.
- Filters - Green & Blue.
