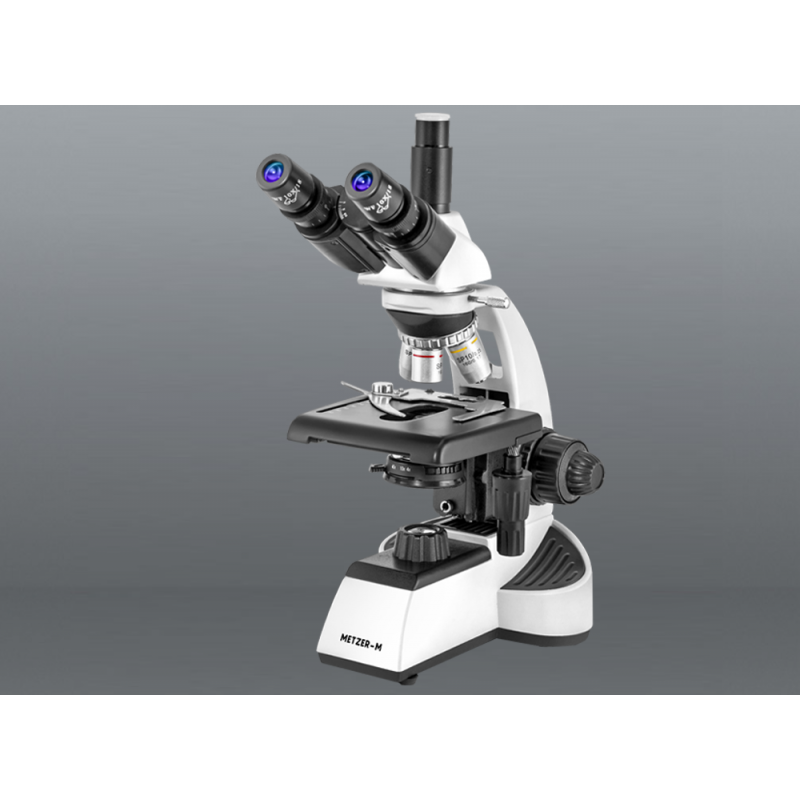

METZER – M ADVANCED TRINOCULAR RESEARCH MICROSCOPE VISION PLUS – 5000 TM (SUPREME)
Specifications:
- Magnification - 40x to 1000x.
- Observation - Seidentopf Trinocular Head inclined 30˚ rotatable at 360˚ and diopter adjustment ring on ocular tube (+/-5) with interpupillary distance from 48mm to 75mm.
- Mechanical - Co–axial Focusing System. Pre Focusing Lever & Tension Adjustment Ring. Reverse angle quadruple nosepiece revolves on ball bearing. Double late mechanical stage size 140mm X 132mm having low positioned co-axial controls. Coarse stroke 37.7mm/rotation, fine division 0.002mm. Cross travel 78mm X 54mm.
- Illumination System - The illuminator incorporated 3W LED lamp and has adjustable brightness.
- Sub stage Condenser - Abbe Condenser N.A. 1.25 with adjustable iris diaphragm.
- Objectives - (Anti Mold and Anti fungal coated). S Plan Achromatic 4x, 10x, 40x (S.L.) & 100x Oil (S.L.).
- Eye pieces - ( Anti fungus coated ) 10x (paired)F.O. V 20mm.
