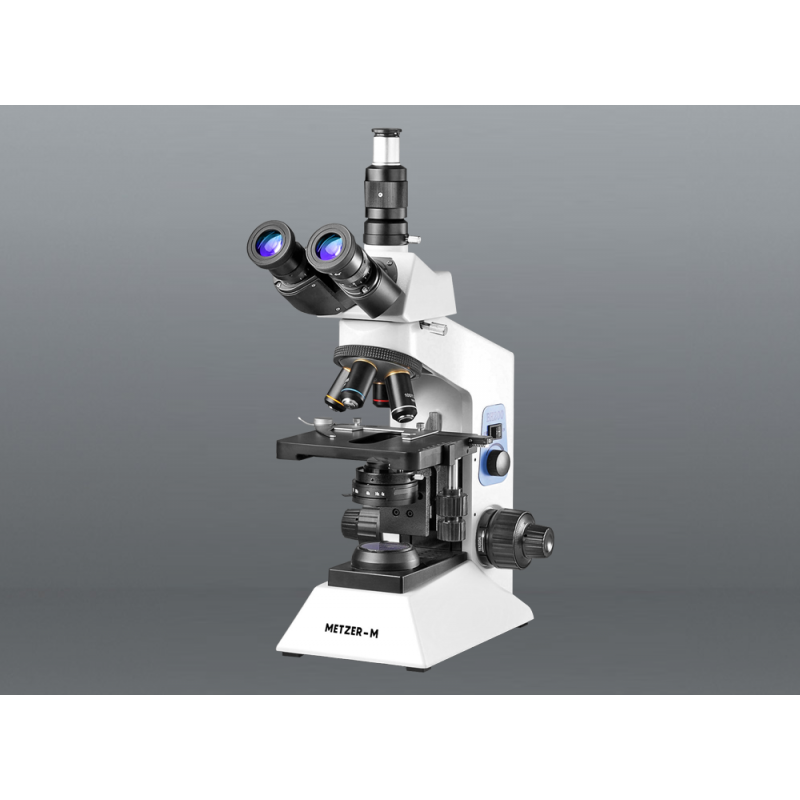

METZER – M ADVANCED RESEARCH MICROSCOPE VISION PLUS – 5000 TM STAR.

Specifications:

• Mechanical Body - Co-axial focusing system. PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING. The slow motion has 1Div=0.002mm. Quadruple nosepiece revolves on ball bearing. Double plate mechanical stage size 140mm X 132mm having low positioned co-axial controls. Cross movement 76mm X 50mm..
• Illumination System - The built-in-base illumination system with Ultra high brightness single 3W LED cold light source. Brightness control knob.
• Sub stage Condenser -Abbe condenser N.A.1.25 swing out filter holder, iris diaphragm..
• Objectives - E-Plan Achromatic 4X, 10X, 40X (S.L.), 100X Oil(S.L.). .
• Standard Accessories - Operating manual, dust cover, guarantee card and Styrofoam molded pack.
• Eyepiece - Wide Field 10X (paired) F.O.V 20mm.
