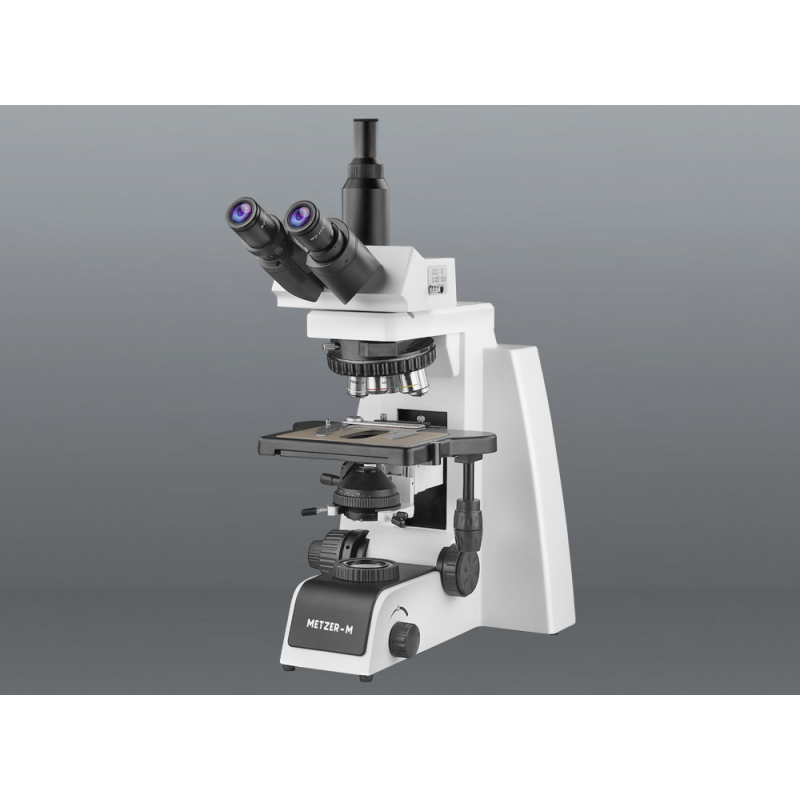

METZER – M ADVANCED RESEARCH MICRSCOPE VISION PLUS – 5000 TM PRO.

Specifications:

• Trinocular Observation- Siedentopf Observation head inclined at 30° rotatable at 360°. Vertical phototube for micro photography. Diopter adjustment ring on ocular tube (±5). Inter-pupillary distance from 48mm to 75mm.
• Mechanical Body - Co-axial focusing control with large knob, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING. Reverse angle sextuple nosepiece revolving on ball bearings. Reckless Mechanical stage size 180mm x 160mm & having low positioned co-axial controls on ball bearing guide ways. Fine div 0.001mm, coarse stroke 37.7mm per rotation, Fine stroke 0.1mm/rotation. Moving range 24mm.
• Illumination - Kohler illumination system with 3W LED external illuminator. Iris diaphragm on collector lens. Aspherical collectors. Brightness control knob.
• Sub stage Condenser - Swing out front lens, abbe condenser N.A. 0.9/1.25, filter holder and iris diaphragm..
• Objectives - CCIS Plan Achromatic 4X, 10X, 20X(S.L), 40X(S.L), 100X Oil(S.L)
• Standard - 12V/100W halogen tungsten bulb, dust cover, guarantee card, blue filter, Operating manual and Styrofoam molded pack.
• Eyepiece - Extra wide field 10X (paired). F.O.V. 25mm.Oculardia 30mm.
