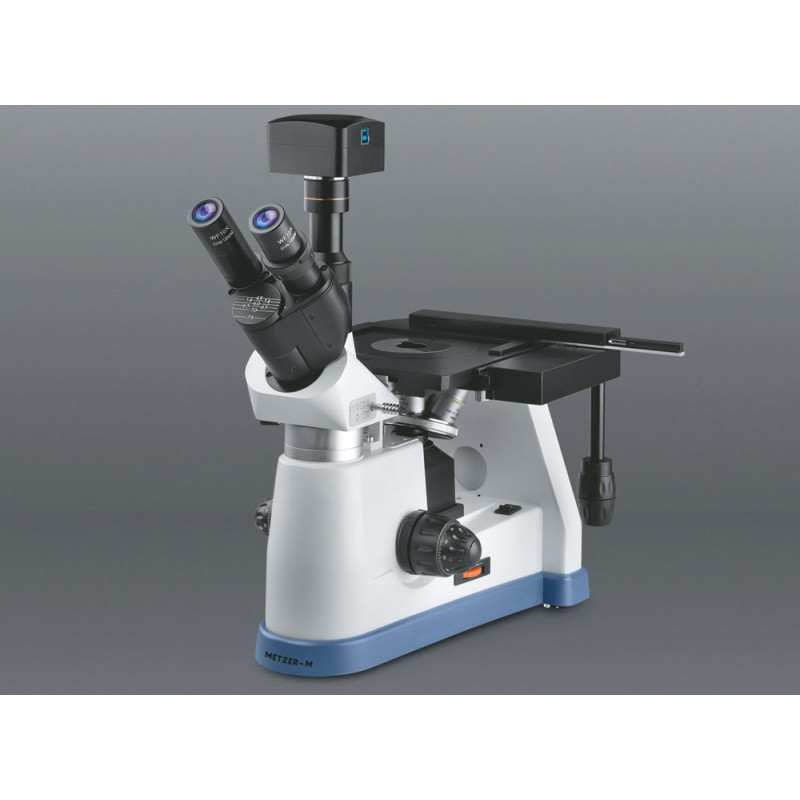

METZER - M ADVANCED CO-AXIAL INVERTED TRINOCULAR METALLURGICAL MICROSCOPE VISION PLUS - 5000 ITM (ELITE)

Product Details :

Observation - SeidentopfTrinocular Observation head inclined 45˚, Vertical phototube for micro photography light split (80:20) Diopter adjustment ring on ocular tube (+/-5) with interpupillary distance from 54mm to 75mm.

Mechanical Body

• Co–axial Focusing System with large knobs.

• Pre Focusing Lever & Tension Adjustment Ring.

• Quadruple nosepiece on ball bearing.

• Mechanical stage is 180mm X 155mm.

• Moving range : 75mmx40mm.

• The mechanical stage has low positioned co-axial controls on ball bearing guide ways.

Illuminator - The Epi – illuminator has 12V – 50W Halogen lamp.

Objectives - (Infinity Corrected)

M Long Working Distance Achromatic 5x

(WD 15.5mm), 10x (WD 8.7mm), 20x (WD 8.0 mm) and 50x (WD SL 5.1 mm).

Eye pieces - (Anti Fungus) Wide Field eye piece 10x (paired) F.O. V 20mm.
