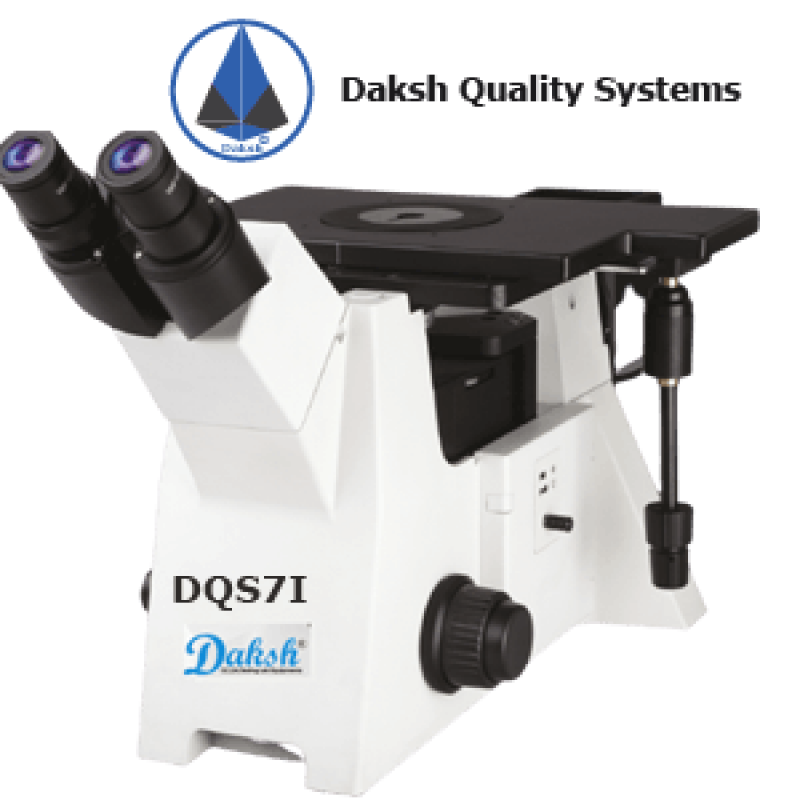

Inverted Metallurgical Microscope

Model:DQS7I

Monocular Observation Head

• Siedentopf observation head inclined at 360.
• Diopter adjustment ring on ocular tube(5)
• Interpupillary distance from 53mm to 75mm
• PL10X/0.25/WD=8.9mm¡¢
• PL20X/0.40/WD=8.7mm¡¢
• PL50X(S) /0.65/WD=3.7mm£¬

Eyepiece(Antifungus)

• Wide field eyepiece 10X(paird) F.O.V 22mm.
• Eyepiece(Antifungus)
• Wide field eyepiece 10X(paird) F.0.V 22mm.
• diaphram and field iris diaphra Adjustable brightness. Filter wheel
• fixed in light path with blue,green and yellow filters

Objectives (Infinity corrected)

• M Long working distance plan 5X
• M.Long working distance plan 10x (WD20.2mm)
• M Long working distance plan 20X(WD 8.80mm)
• M Long working distance plan 100X(S.L.) Dry(WD 0.40mm)

Mechanical Body

• Co-Axial focusing system with large Knobs,
• Mechnanical stage is 242mm*200mm Moving
• Mechanical stage has low positioned co-axial controls
• Side port with phototube for micro photography
