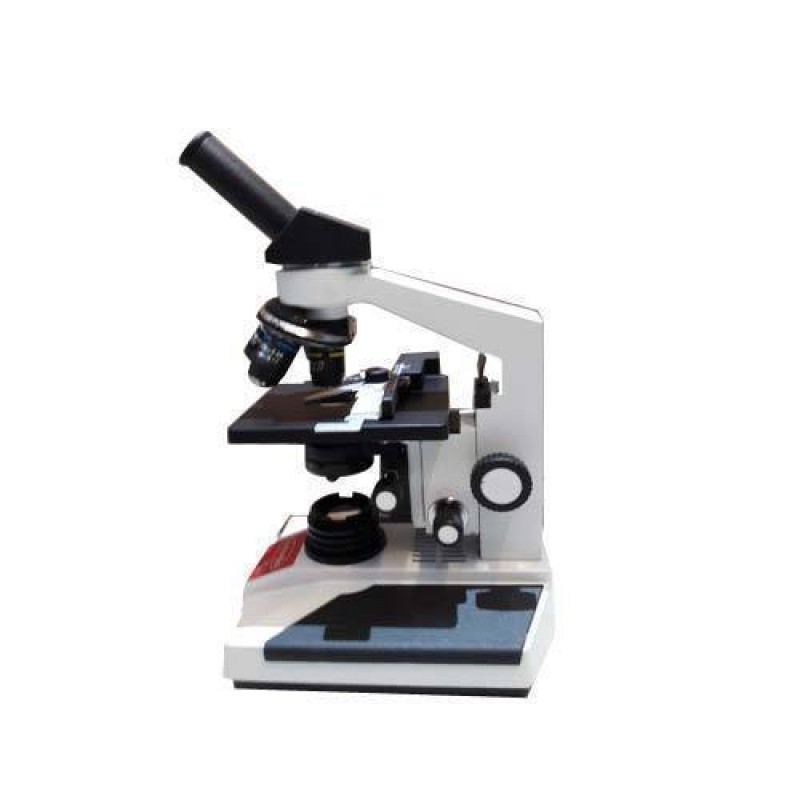

Inclined Tube Microscope
Product Details :
Backed by rich experience, we have emerged as one of the leading manufacturers, exporters and suppliers of a wide array of Inclined Tube Microscope BM-100.
Standard Specifications | |
Eyepiece | 10x WF |
Viewing Tube | Monocular Inclined Tube, Viewing angle 45° |
Nosepiece | Quadruple nosepiece, with positive click stops. |
Objectives | Achromatic Objectives 10x, 40x & 100x (Oil immersion) |
Main Body | Die cast, aluminum alloy body with heavy cast iron base. |
Focusing | Separate coarse and Fine focusing knobs provided on either side of the viewing tube. Coarse focusing through helical cut rack and pinion. Fine focusing through lever system with stop on both extreme ends. |
Stage | Double layer mechanical stgae (Size:125mmX115mm, Movement range: 70mmX30mm) |
Sub-stage Condenser | 1.2 NA Abbe condenser fitted with iris diaphragm, focusable on rack & pinion. |
Illumination | White LED; base condenser , adjustable brightness |
Optional Accessories: | |
Eyepiece | 15x WF |
Objective | 4x |
Illumination | White LED with Battery backup upto 12 hours |
Inclined Tube Microscope
- Views: 107
-
Labline Stock Centre - Product Code: BM-100
- Availability: In Stock
- ₹0
